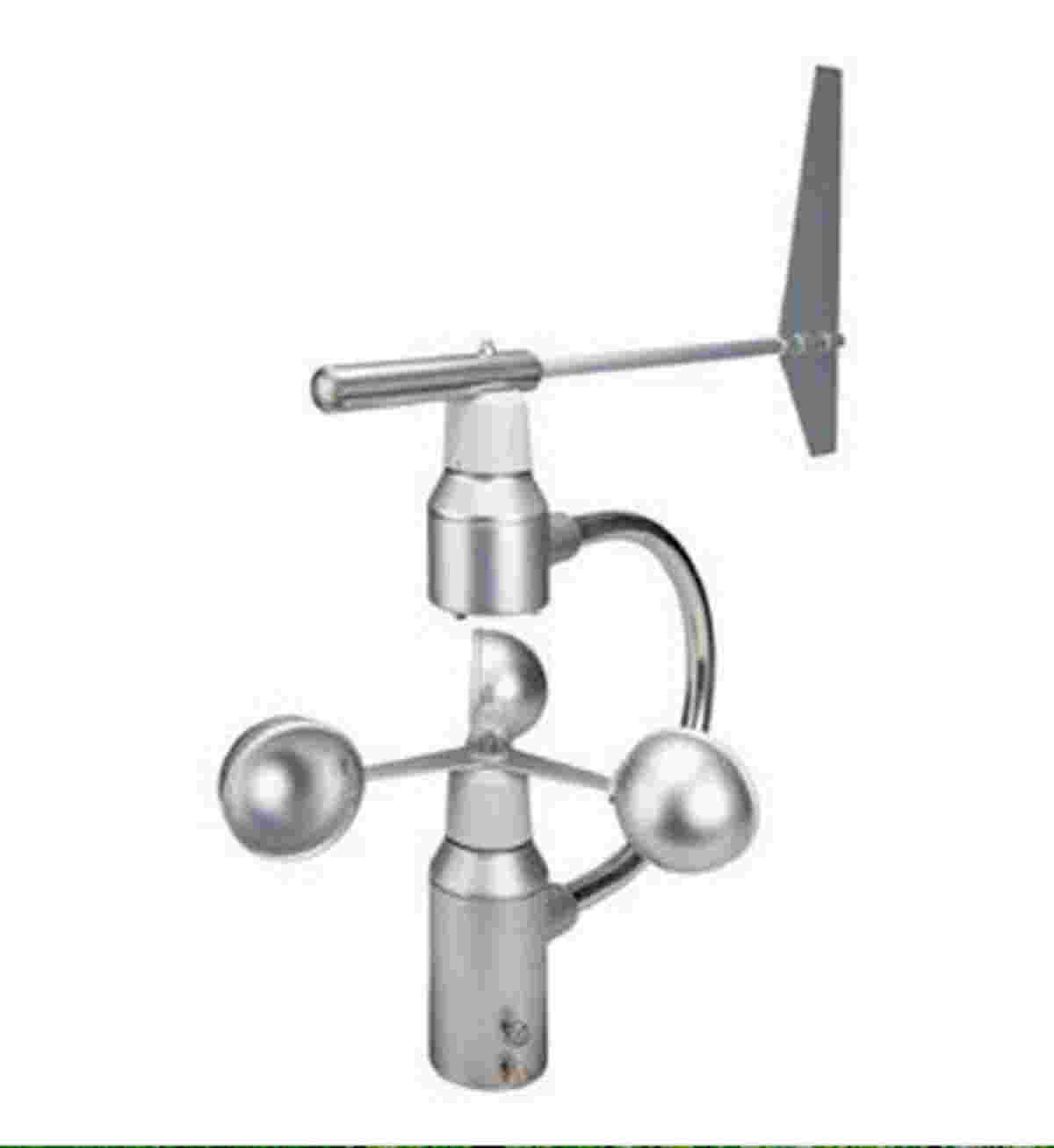

Combined wind sensor

Combined wind sensor – Measures wind velocity and wind direction of horizontal air flow

Get product information here:

Enquire now

Combination of a cup anemometer and wind vane to measure horizontal wind parameters. Both sensors are designed with contactless technology for a smooth start-up.

  • Cup rotation speed is opto-electrically scanned and operates without wear
  • Wind vane position recorded via a contactless scanning device
  • Operational down to 35°C with optional heating
  • Robust construction of anodized aluminium
Wind velocity: 0.3 to 50 m/s
Resolution: 0,05 m/s
Accuracy: ±0,5 m/s
Wind direction: 0 to 360°
Resolution: 2,5°
Accuracy: ±1,5°
Supply voltage: 15 to 24 V DC (heated 24 V AC/DC)
Total height: 620 mm
Weight: 2,8 kg
