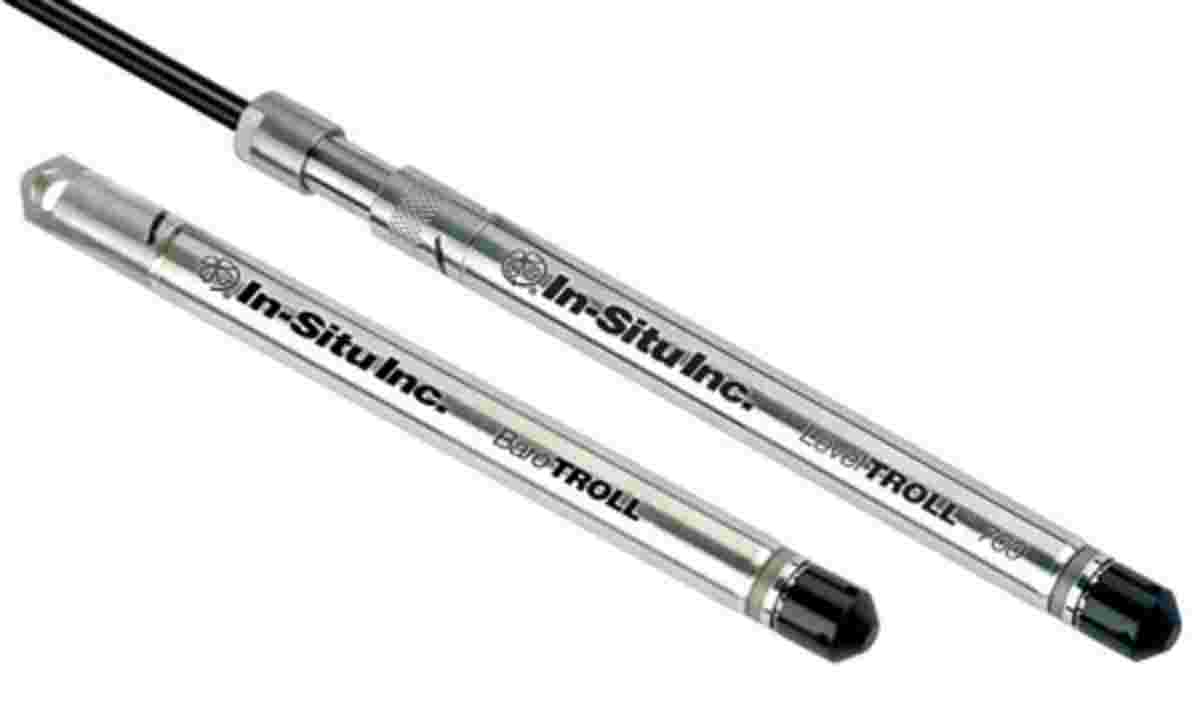

In-Situ Baro TROLL data logger
Logger for barometric air pressure compensation of level data
Get product information here:
Sub-1 inch full titanium device to measure and log barometric pressure and temperature for water level changes due to barometric fluctuations compensation.
- Long- and short-term barometric pressure and temperature monitoring (range 0 - 1.14 bar)
- 3D factory calibration
- Unique anti-drift system
- Setup, view and download logs via Bluetooth with VuSitu mobile app
- Titanium construction with less than 1 inch diameter
- Twist-Lock Cable for deployment and communication (customized lenght up to 1200 m)
- Compatible with VuLink telemetry and 3rd part loggers
Diameter: 1,83cm
Length: 21,6cm
Weight: 124g
Pressure range: 0...1,14bar
Pressure accuracy: ±0,05% FS from 0 to 50 °C
Temperature ranges: Operational: -20...80°C / Storage: -40...80°C / Calibrated: -5...50°C
Temperature accuracy: ±0,1°C
Battery life: 10 years or 2M readings
Data records: 60.000
Output options: Modbus/RS485, SDI-12, 4...20 mA
Vacuum/over-pressure above 1,14bar damages sensor
More details check datasheet
