MeteoMS Multi sensor

Meteo MS – Measurement of the 6 most important weather parameters in one device

Get product information here:

Enquire now

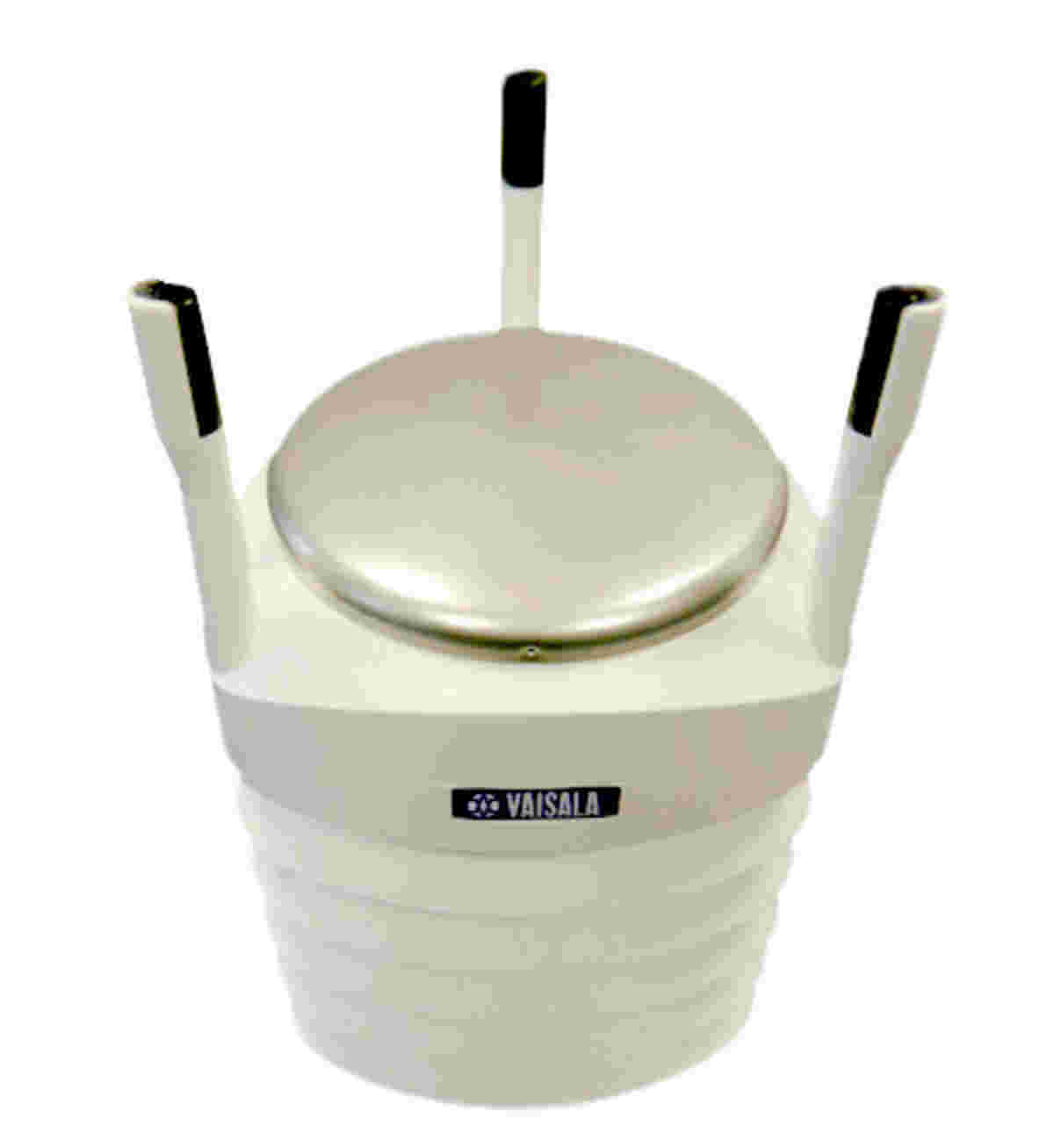

Meteo MS measures wind direction, wind velocity, precipitation, relative humidity, temperature and barometric pressure in one compact sensor. A digital SDI-12 interface is used to connect to a data logger.

  • Robust and low-maintenance, no moving parts
  • Low power input
  • Operational down to -52°C due to optional heating function
  • Simple assembly
  (Measuring range; resolution; accuracy)
Wind velocity: 0 to 60 m/s; 0.1 m/s; ±3% at 10 m/s
Wind direction: 0 to 360°; 1°; ±3°
Precipitation: 0 to 200 mm/h; 0.01 mm; 5%
Temperature: -52 to 60 °C; 0.1°C; ±0.3°C at 20°C
Relative moisture: 0 to 100 % rF; 0.1% rF; ±3% at 0 to 90% rF
Air pressure: 600 to 1,100 hPa; 0.1 hPa; ±0.5 hPa at 0 to +30°C
Output signal: digital SDI -12, RS-232,RS-485,RS-422
Input voltage: 5 to 32 VDC
Power consumption: 3 mA at 12 VDC
Weight: 650 g
Frequently asked questions about "multisensors":

A branch of geophysics that covers the processes and laws in the earth's atmosphere as well as meteorology and climatology.



Biometeorology, agrometeorology, hydrometeorology, environmental meteorology and technical meteorology

Wind direction, wind speed, air temperature, relative humidity, dew point, barometric air pressure, precipitation, global radiation and radiation balance

Frequently asked questions about "precipitation":

A branch of geophysics that covers the processes and laws in the earth's atmosphere as well as meteorology and climatology.

Biometeorology, agricultural meteorology, hydrometeorology, environmental meteorology, technical meteorology.



Wind direction, wind speed, air temperature, relative humidity, dew point, barometric air pressure, precipitation, global radiation, and radiation balance
