Mobile weather station Mini Met
Mobile weather station Mini Met – Compact system to measure weather parameters
Get product information here:

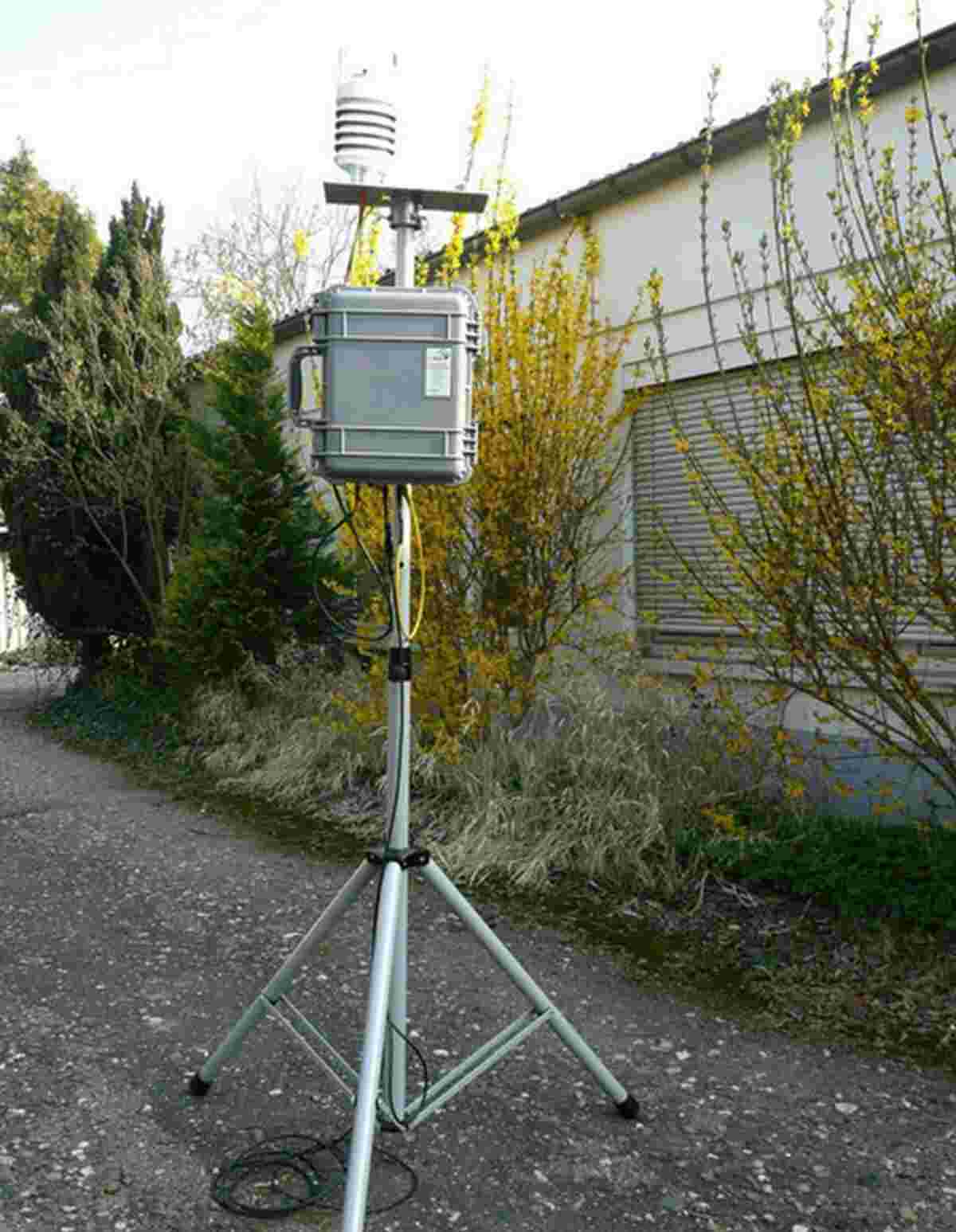

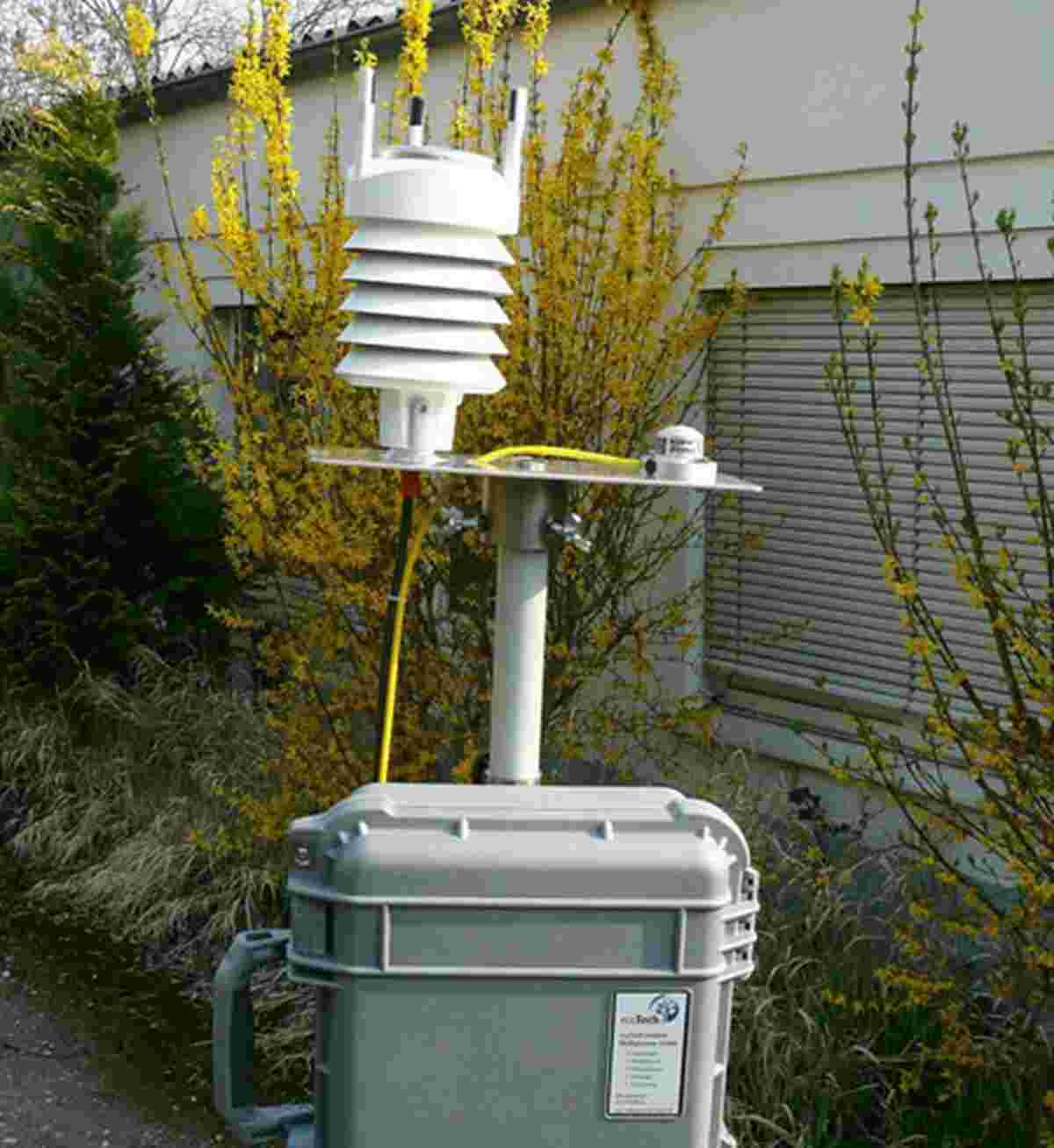

Mobile weather station with integrated data logger to measure wind velocity, wind direction, precipitation, air temperature, relative humidity, barometric pressure, global radiation and soil temperature. The sensor equipment contains a Meteo MS multi sensor, a silicon pyranometer and a digital Pt1000-temperature sensor.
- Compact system, easy handling

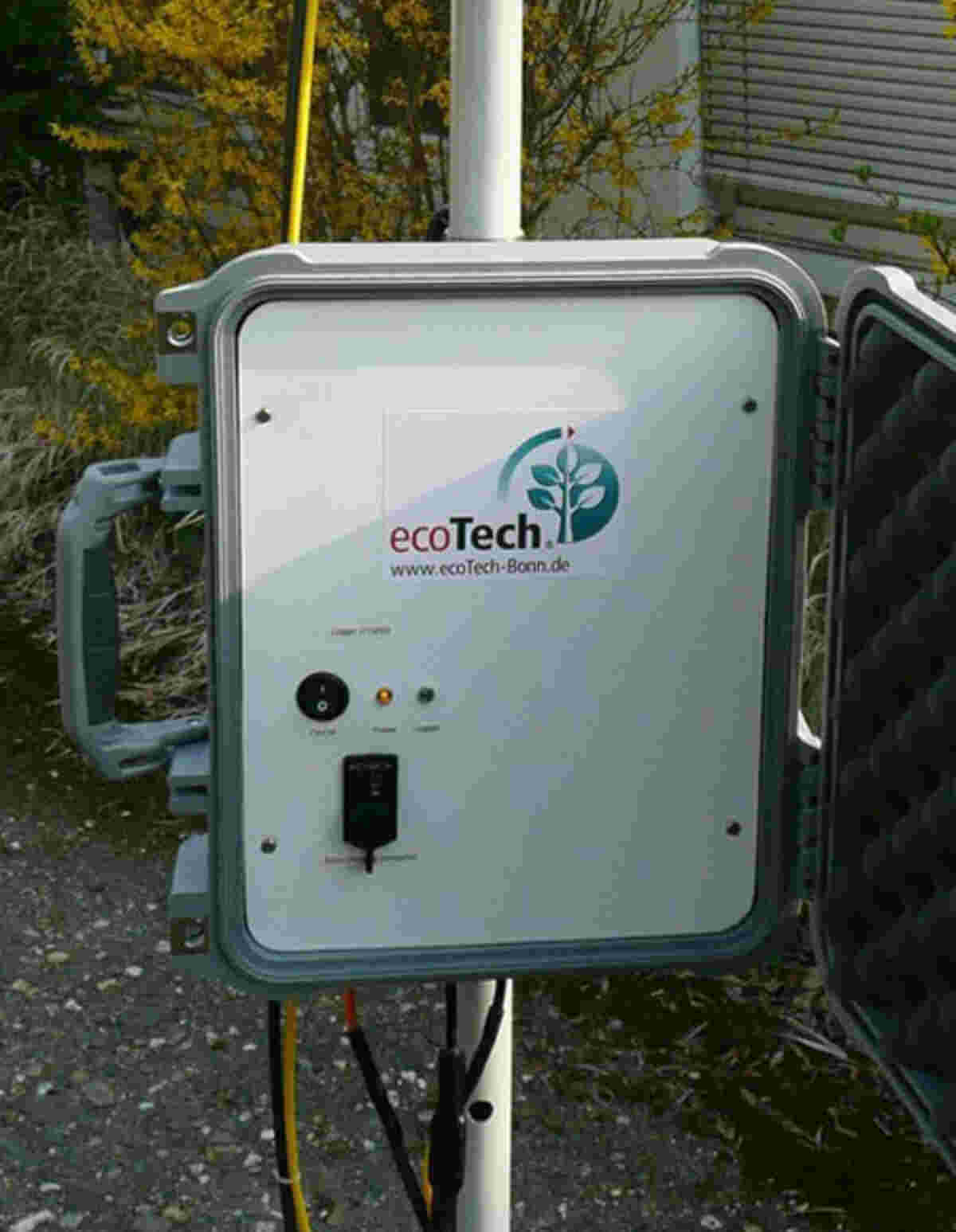

- Integrated data logger with memory for 200,000 measured values
- Tilting sensor unit for levelling in uneven terrain
- Wireless readout of data via radio
OPTIONAL: Remote data transmission via GPRS
| A) Ultrasonic anemometer | (Measuring range; resolution; accuracy) |
| Wind velocity: | 0 ... 60 m/s; 0,1 m/s; ±3% at 10 m/s |
| Wind direction: | 0 ... 360°; 1°; ±3 |
| Precipitation: | 0 ... 200 mm/h; 0,01 mm; 5% |
| Temperature: | -52 ... 60 °C; 0,1°C; ±0,3°C at 20°C |
| Relative humidity: | 0 ... 100 % rF; 0,1% rF; ±3% at 0...90% rF |
| Air pressure: | 600 ... 1100 hPa; 0,1 hPa; ±0,5 hPa at 0...+30°C |
| B) Silicon Pyranometer | |
| Measuring range: | 0...2000 W/m² |
| Sensitivity: | 60...100 μV/W/m² |
| Spectral range | 400...1100 nm |
| C) Temperature sensor | |
| Measuring range: | -40...+85°C |
| Resolution | 0,01°C |
| Accuracy: | ±0,1°C |
| Power supply: | 12 V DC via internal battery |
| Dimensions: | 600 x 400 x 410 mm (transport box) |
| Weight: | ca. 5 kg |
