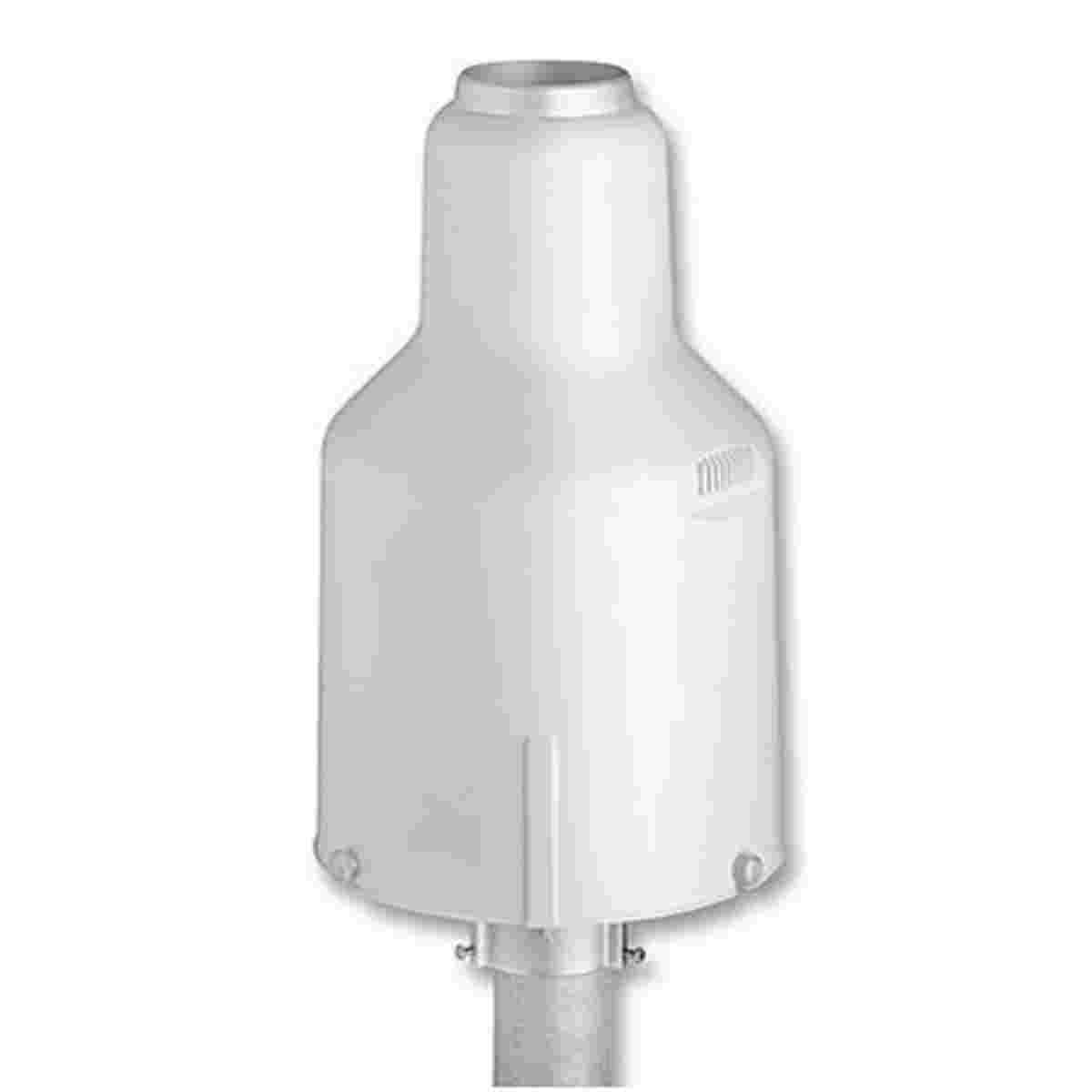

Precipitation Gauge Pluvio² L

Pluvio² L – all weather rain gauge using superior weight-based technology

Get product information here:

Enquire now

Long-term stable and robust rain gauge for the detection of liquid, solid and mixed precipitation. The weighing principle of the Pluvio² L allows precise and reliable measurement in rain, sleet, hail or snow. This means that even the smallest amounts of precipitation (e.g. light drizzle) are precisely recorded.

• All weather rain gauge

• Recording of precipitation amount and intensity

• no moving parts or filters and therefore almost maintenance-free

• meets all requirements of WMO guideline No.8

• optional heating prevents the formation of snow hoods

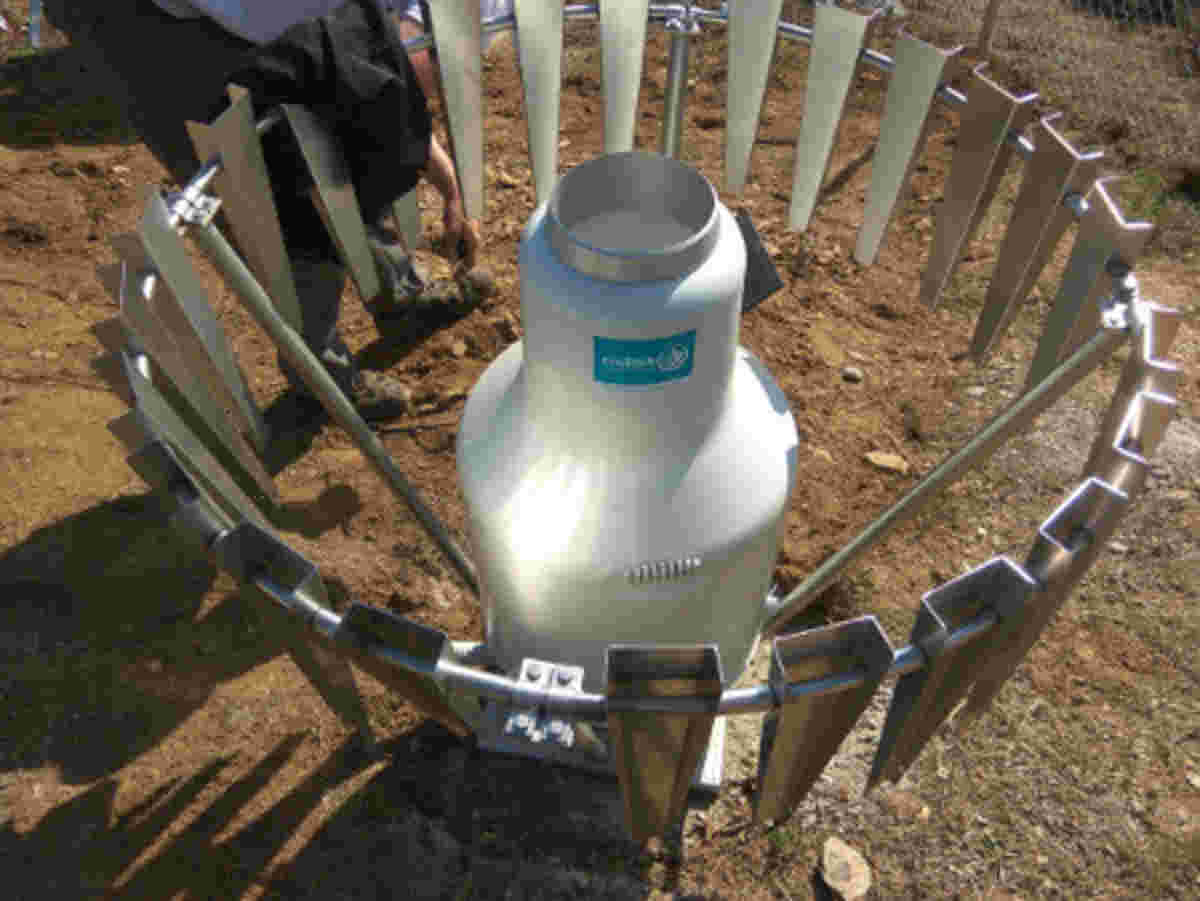

• optional windscreen reduces the influence of turbulence

Collecting area: 200 cm² (optional 400 cm²)
Measuring capacitance: 1500 mm (1500 mm)
Measuring range: 0…50 mm/min
Resolution: 0,01 mm; 0,01 mm/min or mm/h
Accuracy: Amount ±0,1 mm or ±1 % of measured value
  Intensity ±0,1 mm/min respectively ±0,6 mm/h or ±1 % of measured value
Measurement parameters:  Cumulative precipitation, precipitation intensity, container content (real-time and non-real-time)
Output signal: SDI-12, RS485, Impulse
Operating temperature: -40…+60 °C
Dimensions (Ø x h): 450 x 752 mm (Pluvio² L 200)
  450 x 677 mm (Pluvio² L 400)
Weight: approx. 16 kg
Power heating (optional): 25 W (12 V); 100 W (24 V)
Ring heating operating range: -40…+60 °C

Equipment: Windbreak to be able to detect precipitation at exposed locations or Pipellar for mounting on concrete foundations
