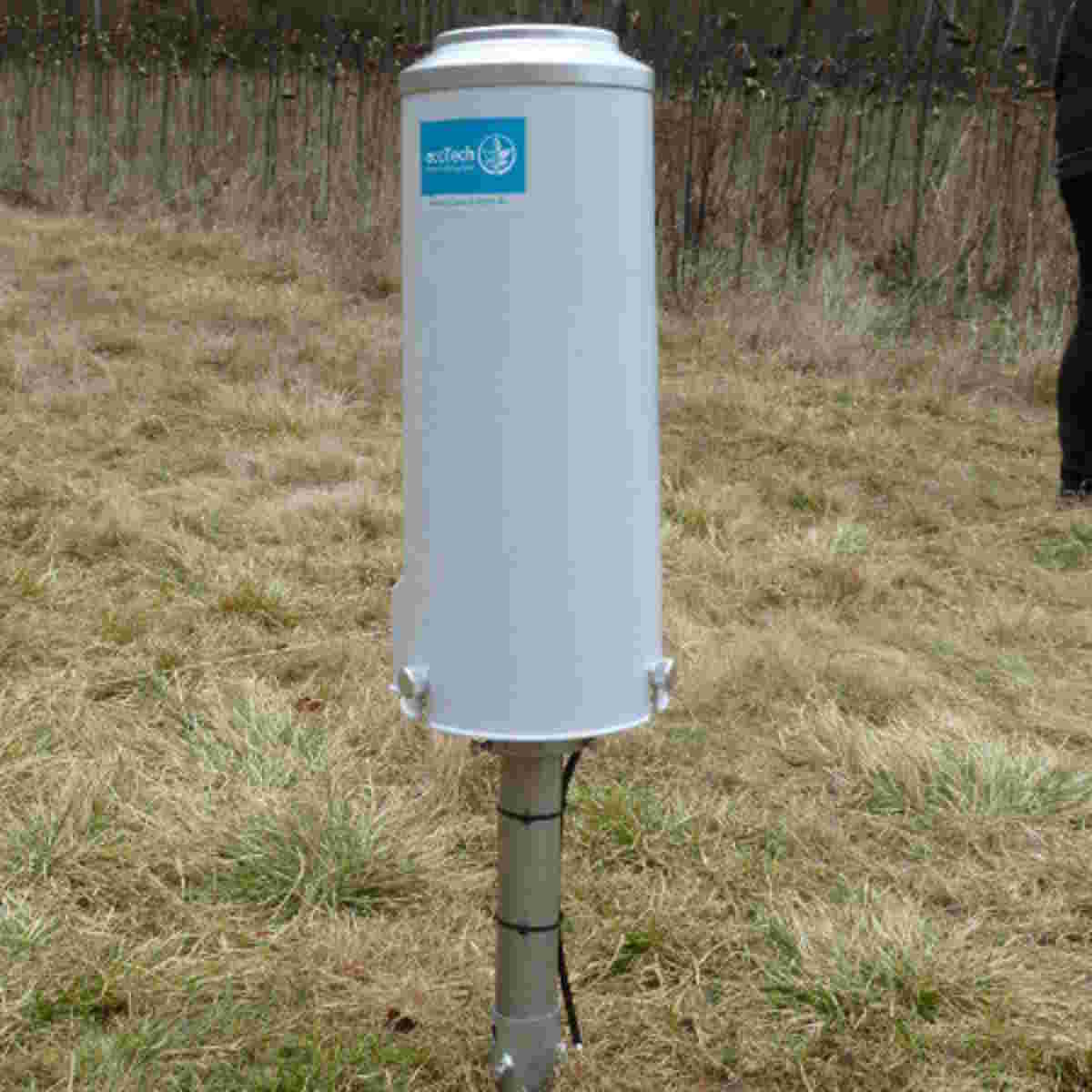

Precipitation Gauge Pluvio²S
Pluvio² S - a compact all-weather precipitation sensor based on the weighing principle.
Long-term stable and robust rain gauge for the detection of liquid, solid and mixed precipitation. The weighing principle of the Pluvio² S allows accurate and reliable measurement in rain, sleet, hail or snow. The measuring principle allows the accurate recording of even the smallest amounts of precipitation (eg light drizzle). It saves space and is light compared to the proven Pluvio² L.

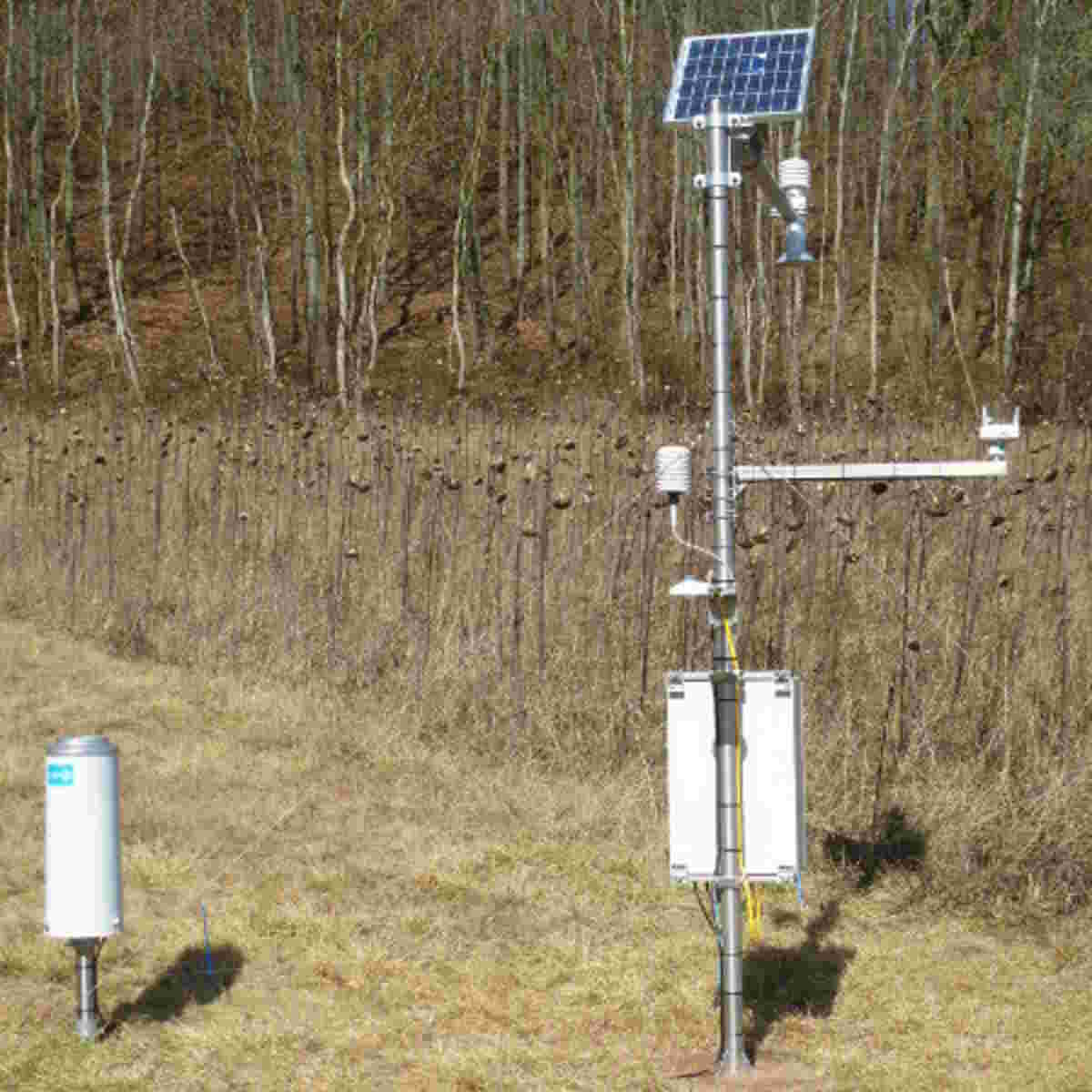

An application example can be found in the project Intensive Measuring Area Ebergötzen (Uni GÖ).
- compact all-weather rain gauge
- Recording of precipitation amount and intensity
- no moving parts or filters and thus almost maintenance-free
- meets all requirements of WMO guideline No.8
- optional heating prevents the formation of snow hoods
- optional windscreen reduces the influence of turbulence
|Collecting area:||200 cm²|
|Measuring capacitance:||400 mm|
|Measuring range||0…50 mm/min|
|Resolution:||0,01 mm; 0,01 mm/min or mm/h|
|Accuracy:||amount ±0,1 mm or ±1% of measured value|
|intensity: ±0,1 mm/min respectively ±0,6 mm/h or ±1 % of measured value|
|Measurement parameters:||cumulative precipitation, precipitation intensity, container content (real-time and non-real-time)|
|Output signal:||SDI-12, RS485, Impulse|
|Operating temperature||-40…+60 °C|
|Dimensions (Ø x h)||288 x 651 mm|
|Weight:||approx. 7,8 kg|
|Power heating (optional):||12,5 W (12 V); 50 W (24 V)|
|Ring heating operating range:||-40…+60 °C|
Equipment: Pillar for mounting on concrete foundations / screw foundations (optional)
