Temperature sensor / Hygrometer

Combination sensor ideal for applications in meteorology and building services engineering

Get product information here:

Enquire now

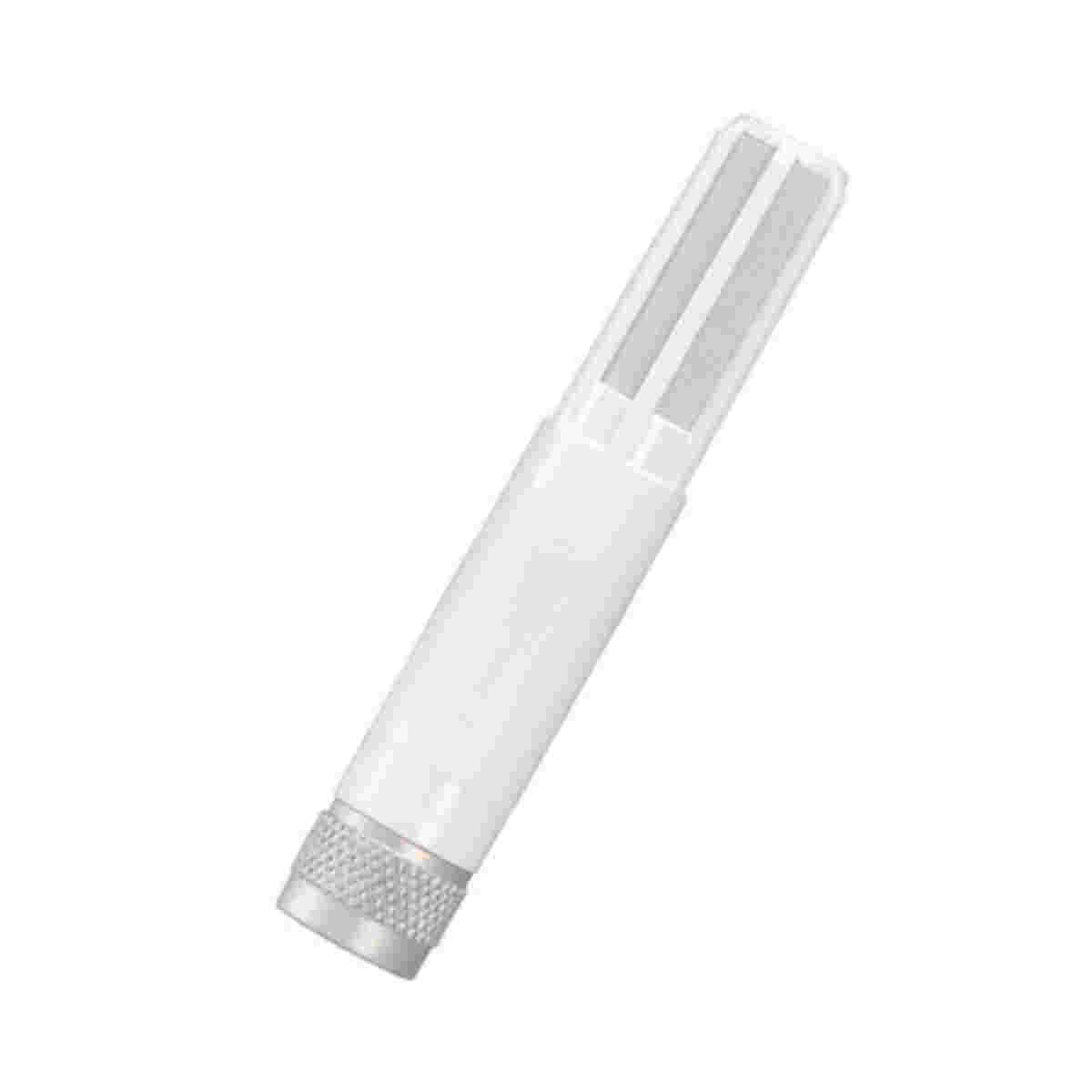

Compact combination sensor to measure relative humidity and air temperature for exterior and interior use

  • Durable and reliable
  • Compact
  • Replaceable sensor module
  • Also available with an accuracy of ±0.5 % rF
Measuring range Accuracy
Temperature (Pt100):  -40 to +60 °C; ±0.1°C at 23°C
Relative humidity (capacitive): 0 to 100 %rF; ±0.8% at 23°C
Output signal: digital (UART) and analogue (2 x 0 - 1 VDC)
Input voltage: 3.2 to 5 VDC
Power consumption: ca. 4 mA
Operating temperature: -50...+100°C
Dimensions: 83 x 15 mm (length x diameter)
Weight: 10 g
Frequently asked questions about "multisensors":

A branch of geophysics that covers the processes and laws in the earth's atmosphere as well as meteorology and climatology.



Biometeorology, agrometeorology, hydrometeorology, environmental meteorology and technical meteorology

Wind direction, wind speed, air temperature, relative humidity, dew point, barometric air pressure, precipitation, global radiation and radiation balance
