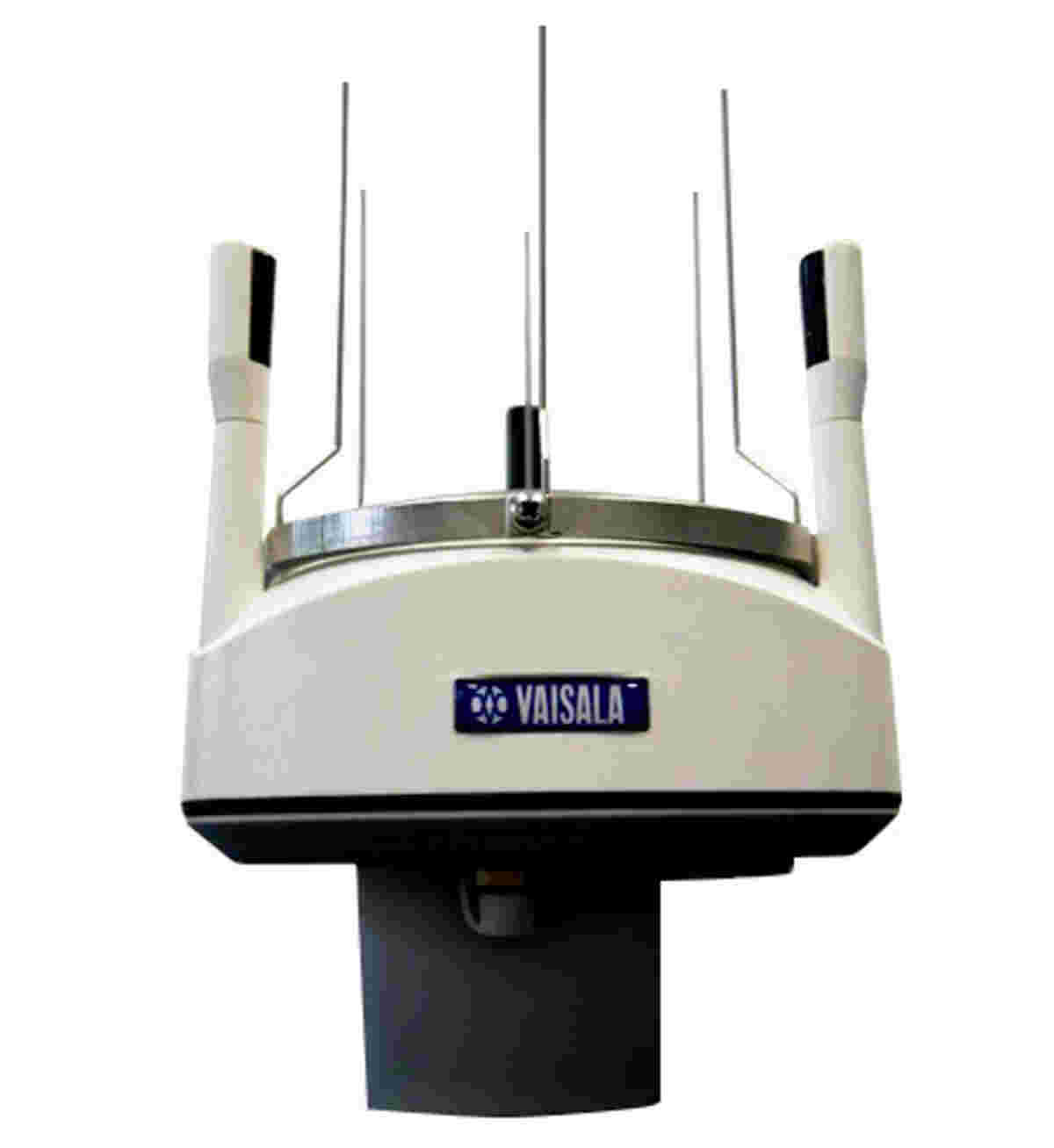

Wind combination sensor USA
Ultrasonic anemometer to measure wind velocity and wind direction
Get product information here:

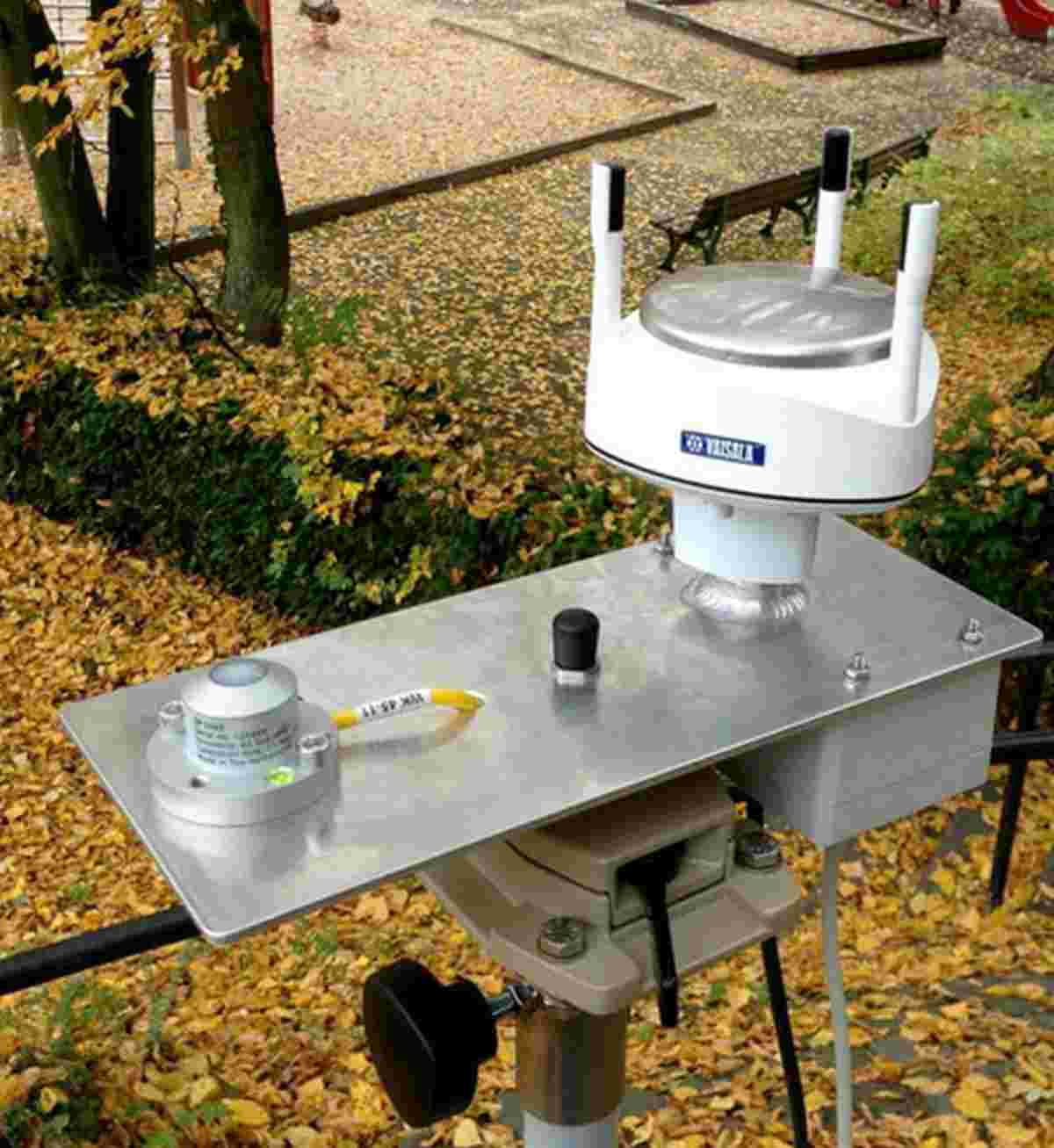

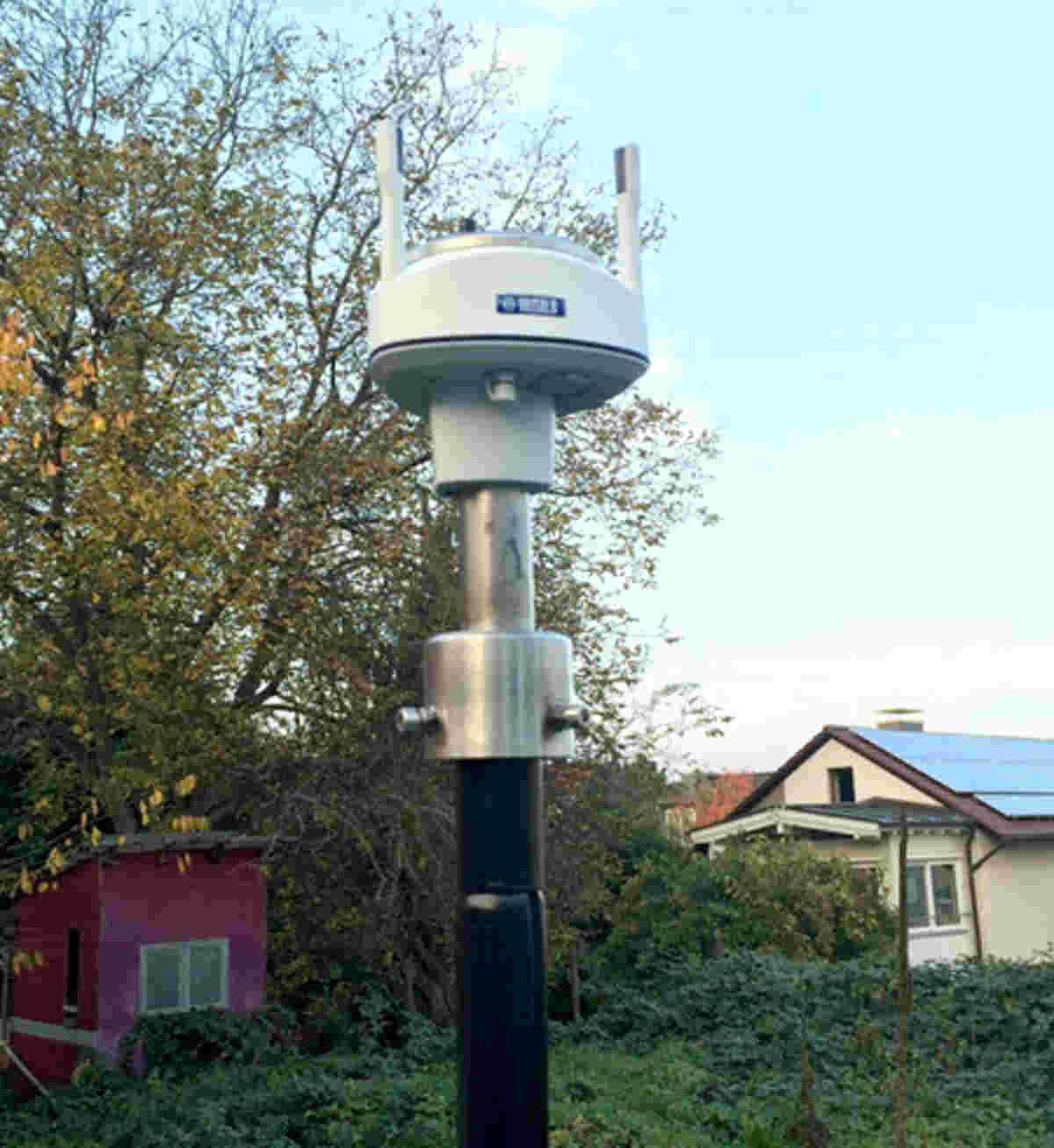

Compact combination sensor to measure wind velocity and wind direction at weather stations. Due to ultrasound technology sensor has no moving parts and is therefore very robust and low-maintenance
- Robust and low-maintenance design, no moving parts
- Low power consumption
- Operates down to -52°C with optional heating
- Simple assembly
| Wind velocity: | 0 to 60 m/s; 0.1 m/s; ±3% at 10 m/s (Measuring range; resolution; accuracy) |
| Wind direction: | 0 to 360°; 1°; ±3° (Measuring range; resolution; accuracy) |
| Output signal: | Digital SDI -12, RS-232, RS-485, RS-422 |
| Input voltage: | 5 to 32 VDC |
| Power consumption: | 3 mA at 12 VDC |
| Dimensions: | 139 x 114 mm (height x diameter) |
| Weight: | 510 g |
