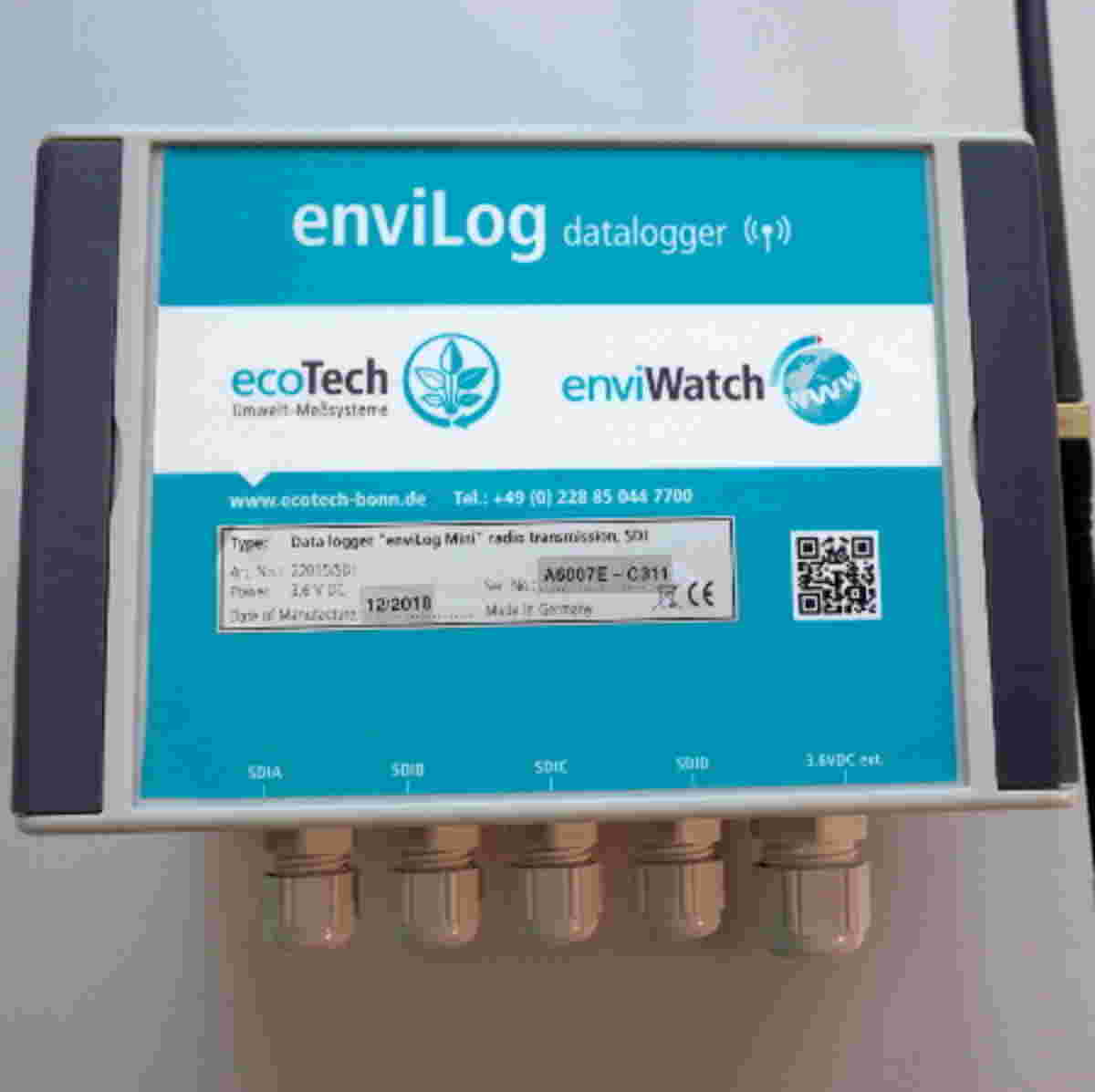

enviLog Mini SDI
Data logger enviLog Mini SDI
Get product information here:
Self-sufficient mini-monitoring station with a maximum of four digital sensors (SDI12) and/or usage as part of wireless sensor networks.
- up to four sensors (up to 12 measurement parameters)

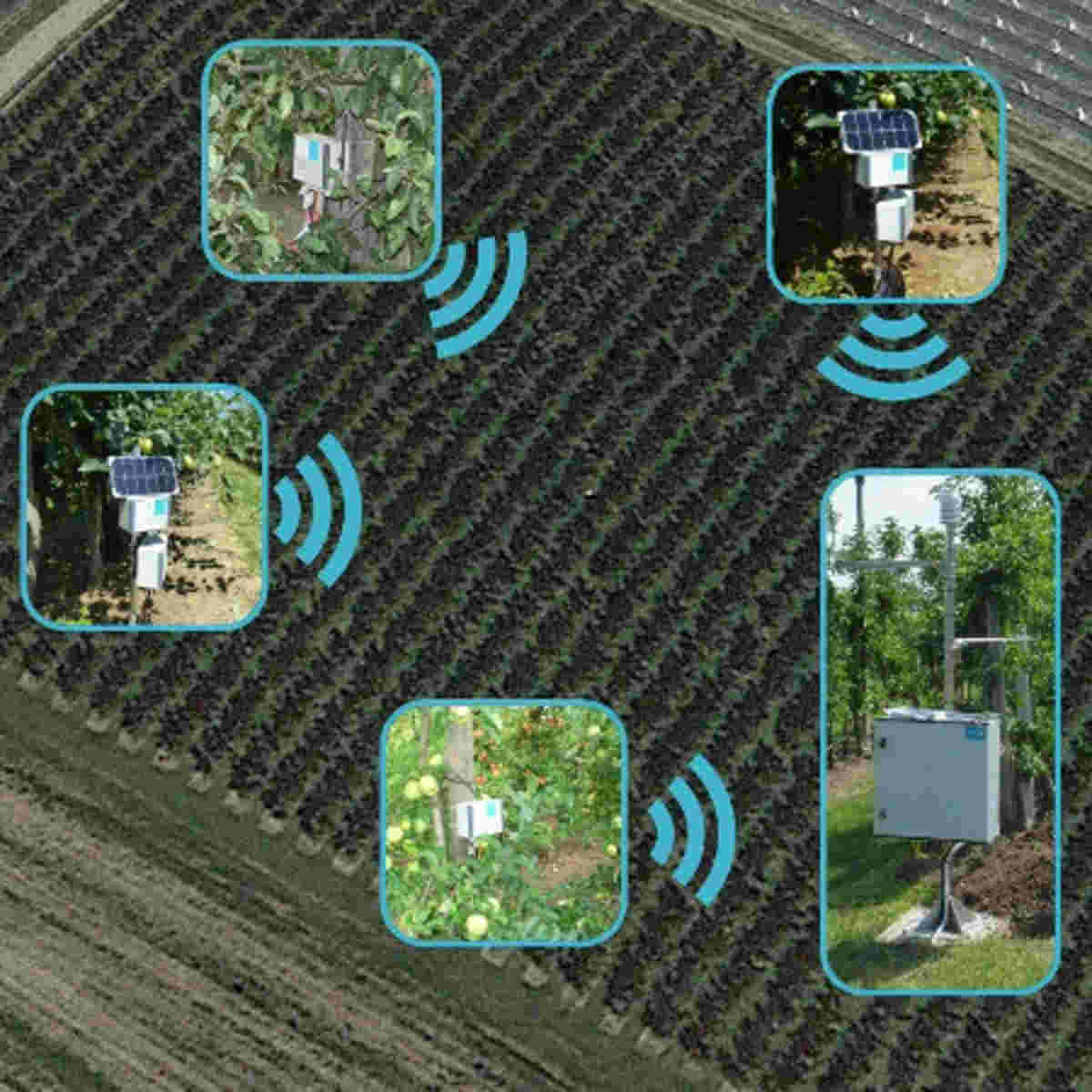

- can be used as a single logger or as part of a network:
- Data transmission from enviLog Mini SDI (= RemoteLogger) via radio to enviLog Midi or enviLog Maxi (= MainLogger)
- Measurements transmitted via radio are redundantly logged in the MainLogger (as with permanently connected sensors
- Remote data transfer of the MiniLogger readings via the MainLogger to a server (e.g., enviWatch) possible
- easy-to-use software
- wireless communication with PC via radio
- conversion of the data by pressing a button in Excel format

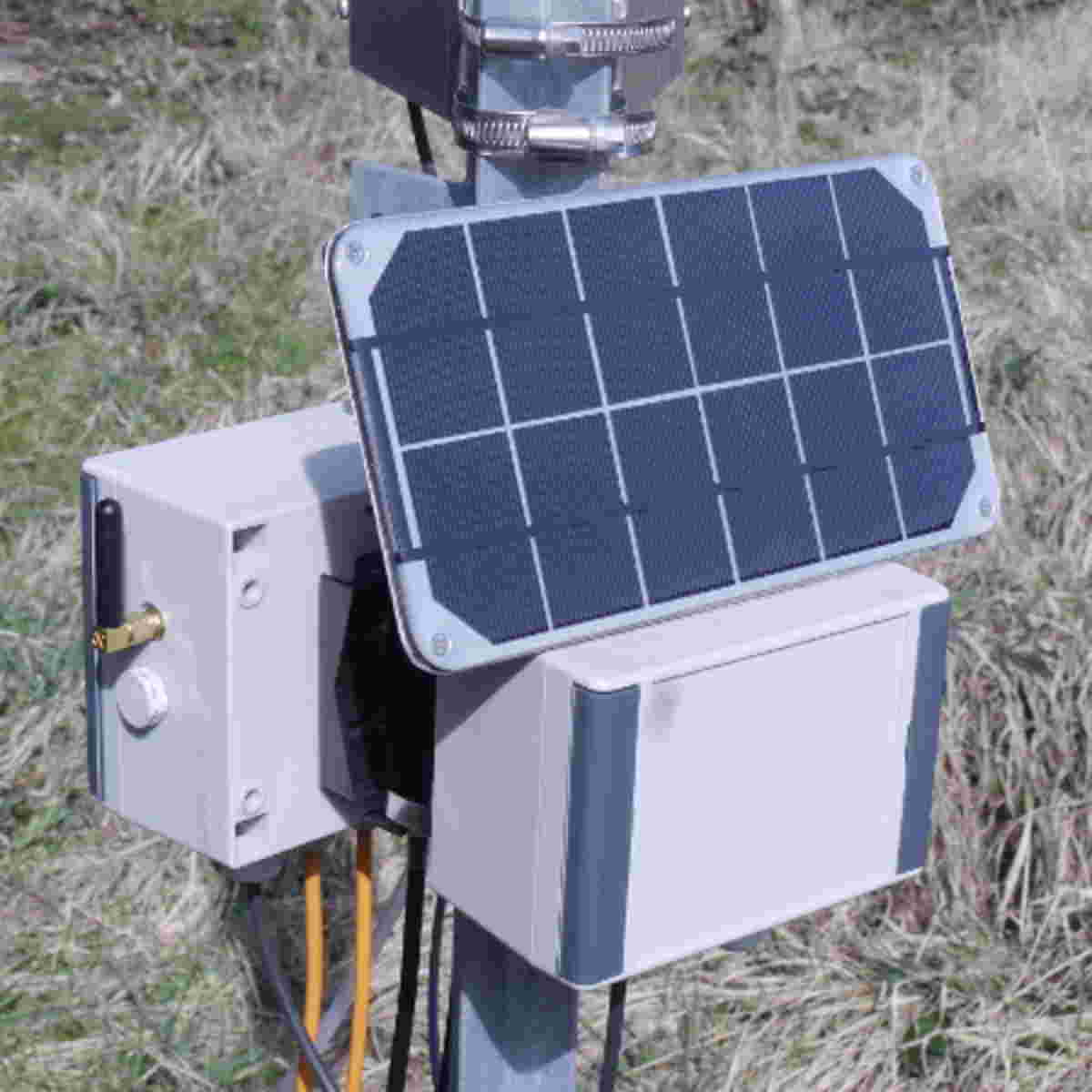

- including mast holder for easy installation

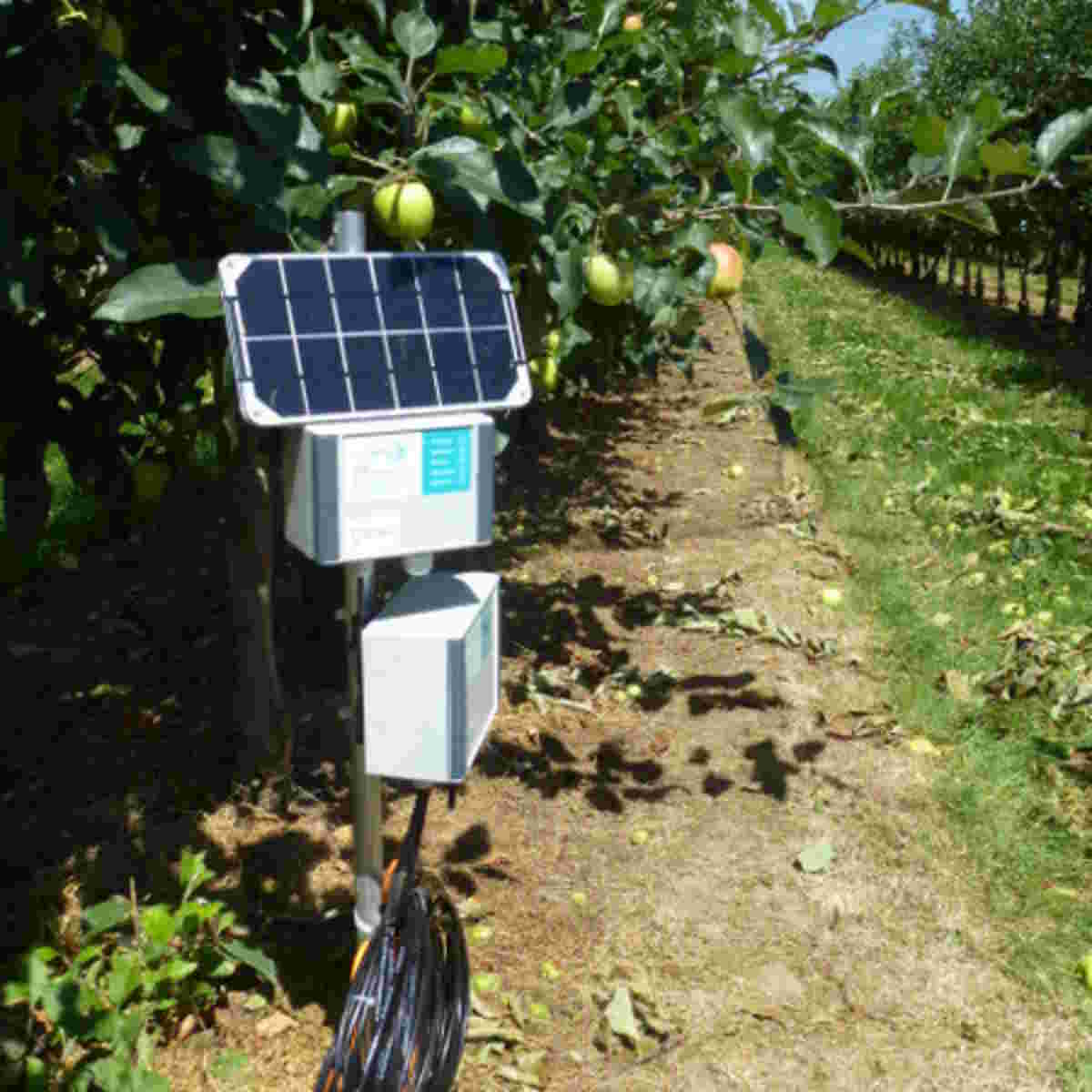

- optional: solar module for enviLog Mini SDI
| Number of channels: | 12, plus temperature in logger housing & supply voltage (battery or solar) |
| Interfaces physical: | 4 SDI-12 inputs for permanently connected sensors |
| 1 wireless interface for communication with PC | |
| Radio frequency: | 433 MHz |
| Radio Range: | 100 m (without obstacle) |
| Memory: | 2048 kB (ca. 300.000 measurement), nonvolatile |
| Supply voltage: | 3.6 V DC lithium battery, opt. solar module 22015 / SM |
| Case: | UV-resistant plastic, IP 67 |
| Dimensions [mm]: | 90 x 180 x 130 (l x w x h) |
