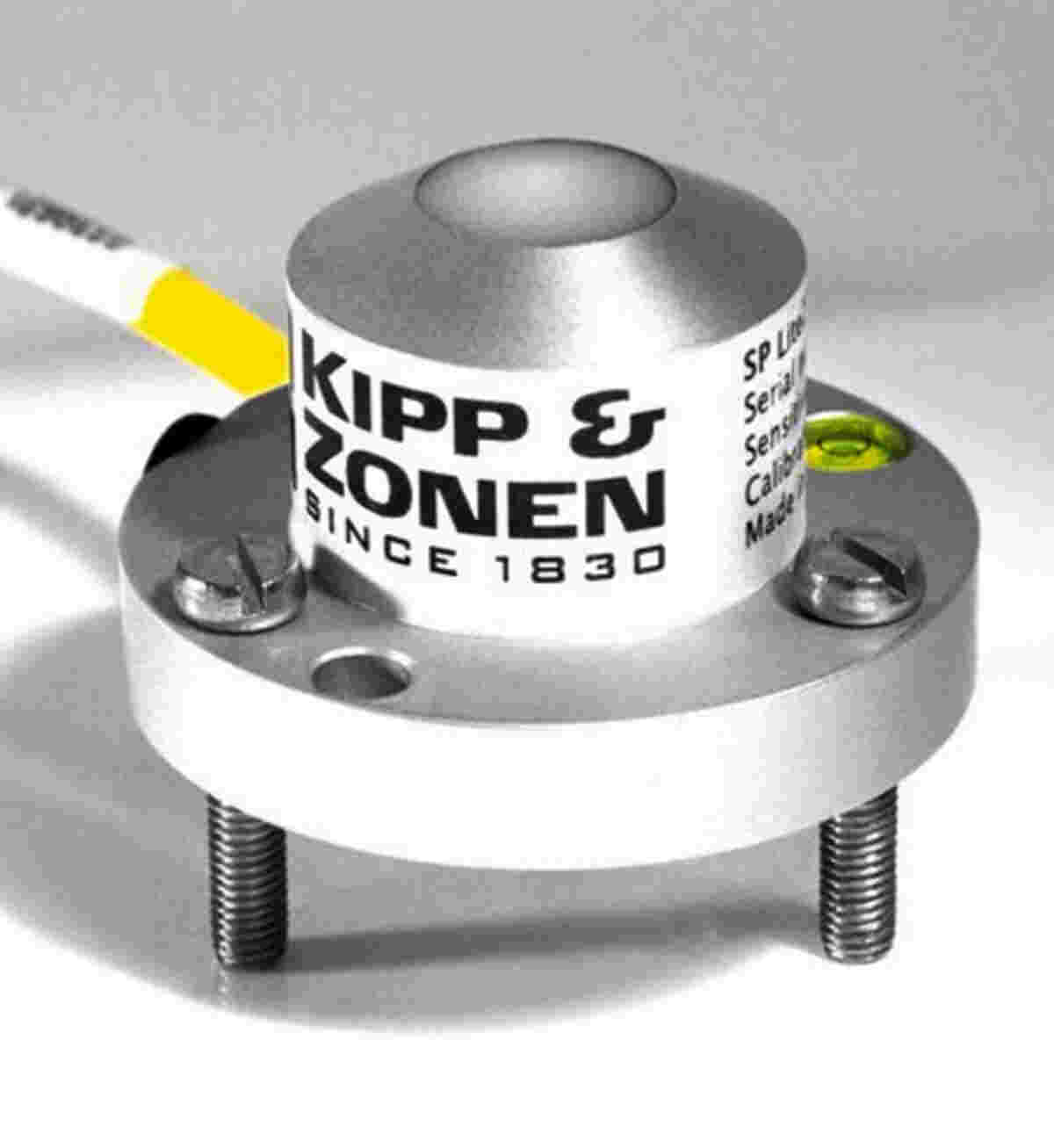

Silicon Pyranometer SP Lite2

Durable Silicon Pyranometer SP Lite2

Get product information here:

Enquire now

Cost-effective solar sensor to measure global radiation, for use in all weather conditions. A silicon photocell transforms the incoming radiation into an analogue mV signal.

  • Affordable pyranometer for routine measurements
  • Compact and light
  • Easy to use, low maintenance required
  • Can combine 2 sensors to function as an albedometer
Measuring range: 0 to 2,000 W/m²
Sensitivity: 60 to 100 μV/W/m²
Spectral range: 400 to 1,100 nm
Output signal: Analogue 0 - 20 mV; 4 - 20 mA (with extra module)
Operating temperature: -30 to +70°C
Dimensions: 84 x 110 mm (height x diameter)
