Application example: Leachate monitoring
The University of Göttingen intensive trial site in Ebergötzen
Get product information here:

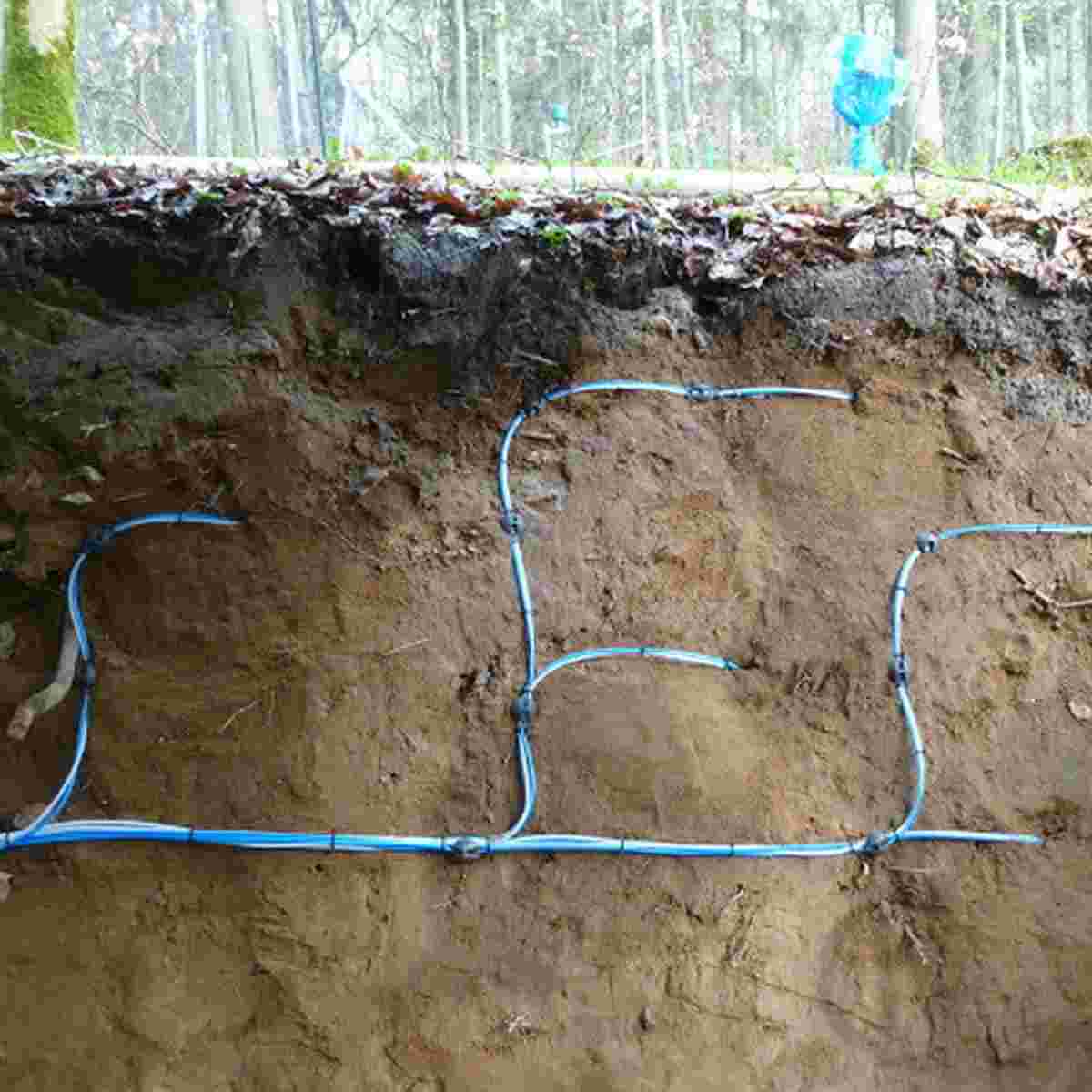

Extraction of leachate with suction plates on two different exposed slopes in the forest
| Plastic suction plates for leaching water |
| Electronic vacuum controls with control function |
| Fuel cell for independent energy supply |
Georg-August-Universität Göttingen
Department of Physical Geography
Geographical Institute
Goldschmidtstraße 5
Contact:
| Dr. Jürgen Grotheer | jgrothe@gwdg.de |
| Dr. Harold Hughes | hhughes@uni-goettingen.de |
Project leader:
| Prof. Daniela Sauer |
Experimental set-up

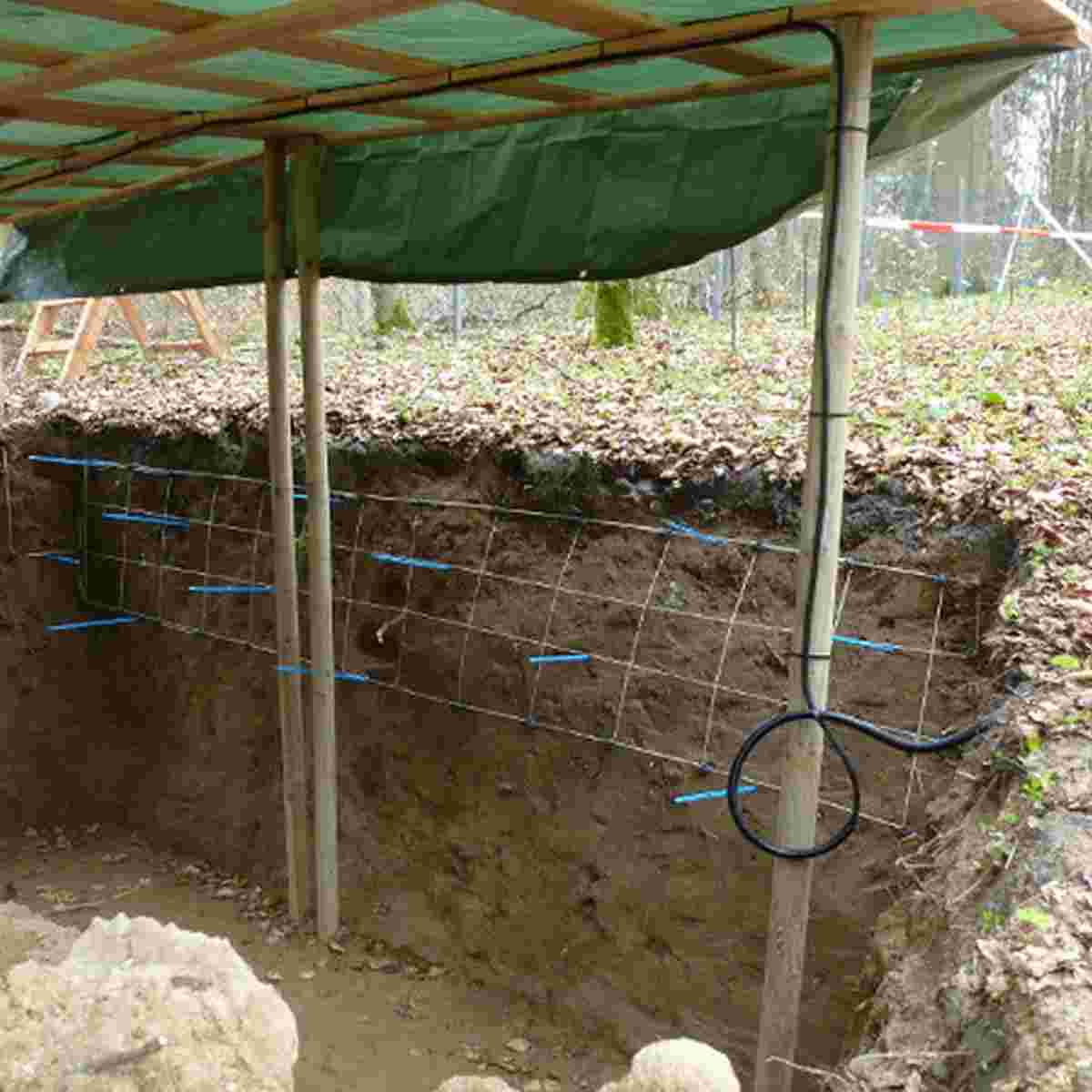

- Two test sites on a slope with different orientation (north, south)

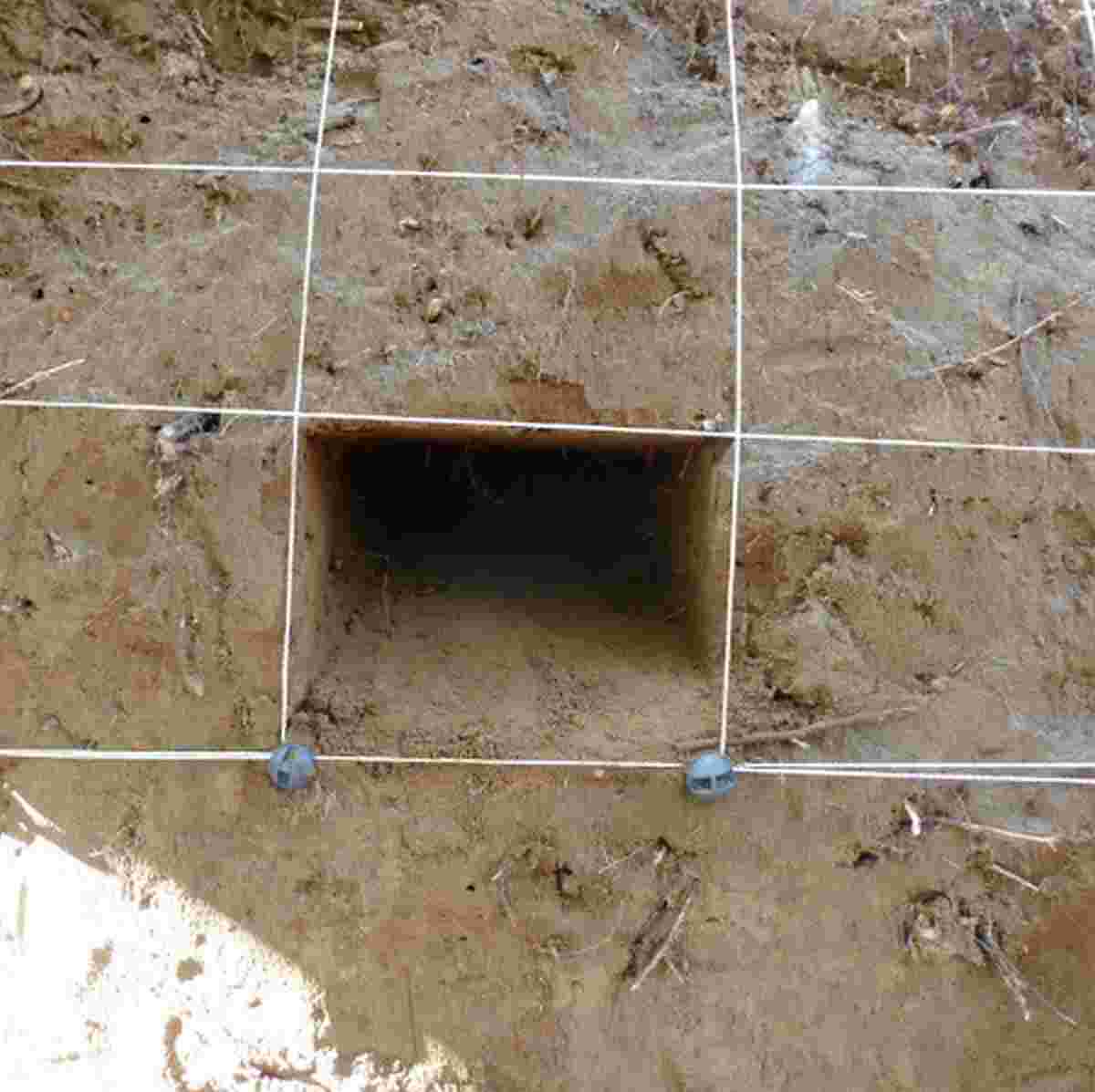

- Removal of leachate with plastic suction plates
- Three suction plates installed at four depths on each surface

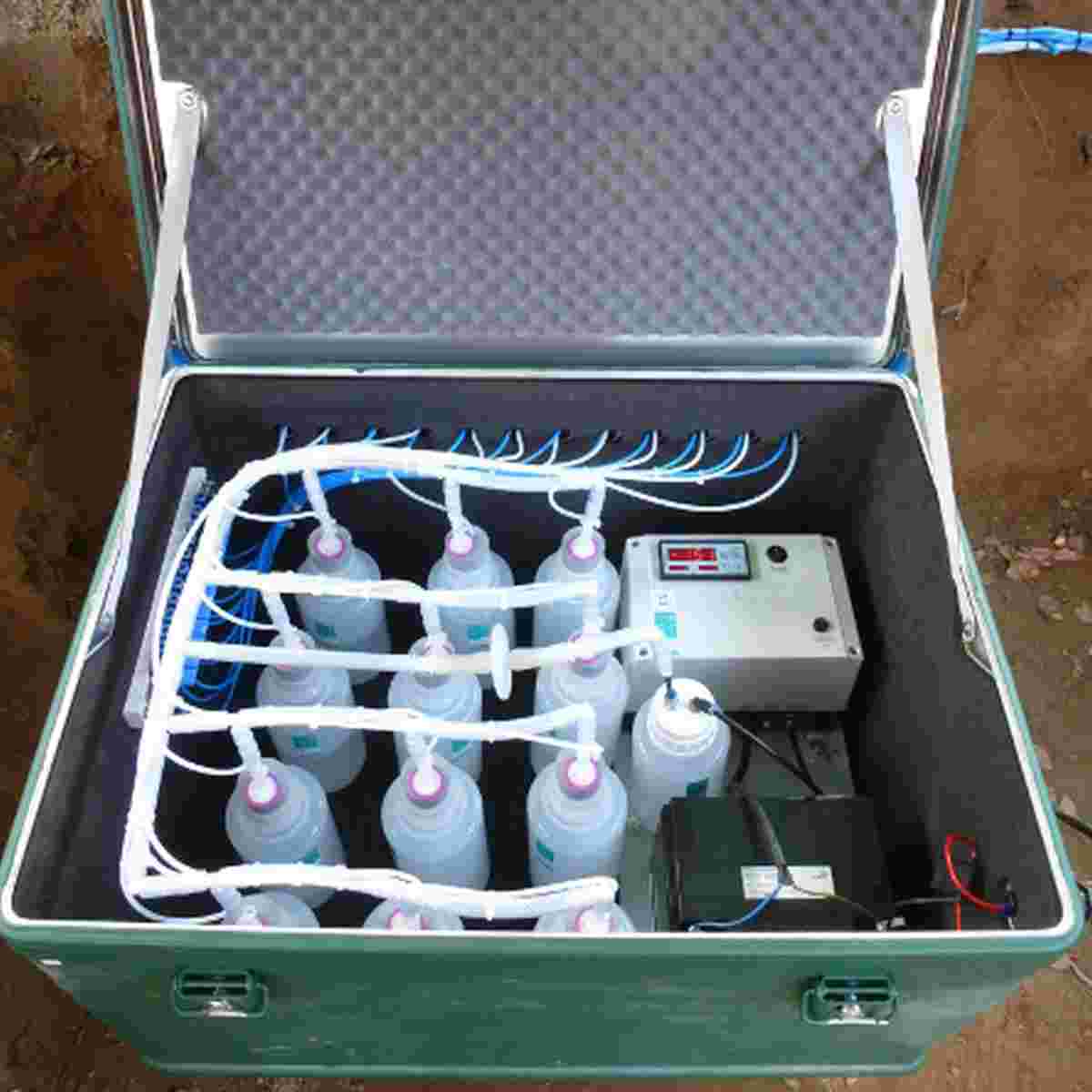

- Finely adjustable negative pressure using electronic vacuum control
- Automatic control of system integrity through a control function
- Near-surface sampling of the leachate when rewetting
- Central energy supply through a fuel cell
- Installation and commissioning by ecoTech
