Dosing pump

Dosing pump: Continuous dosing of liquid media

Get product information here:

Enquire now

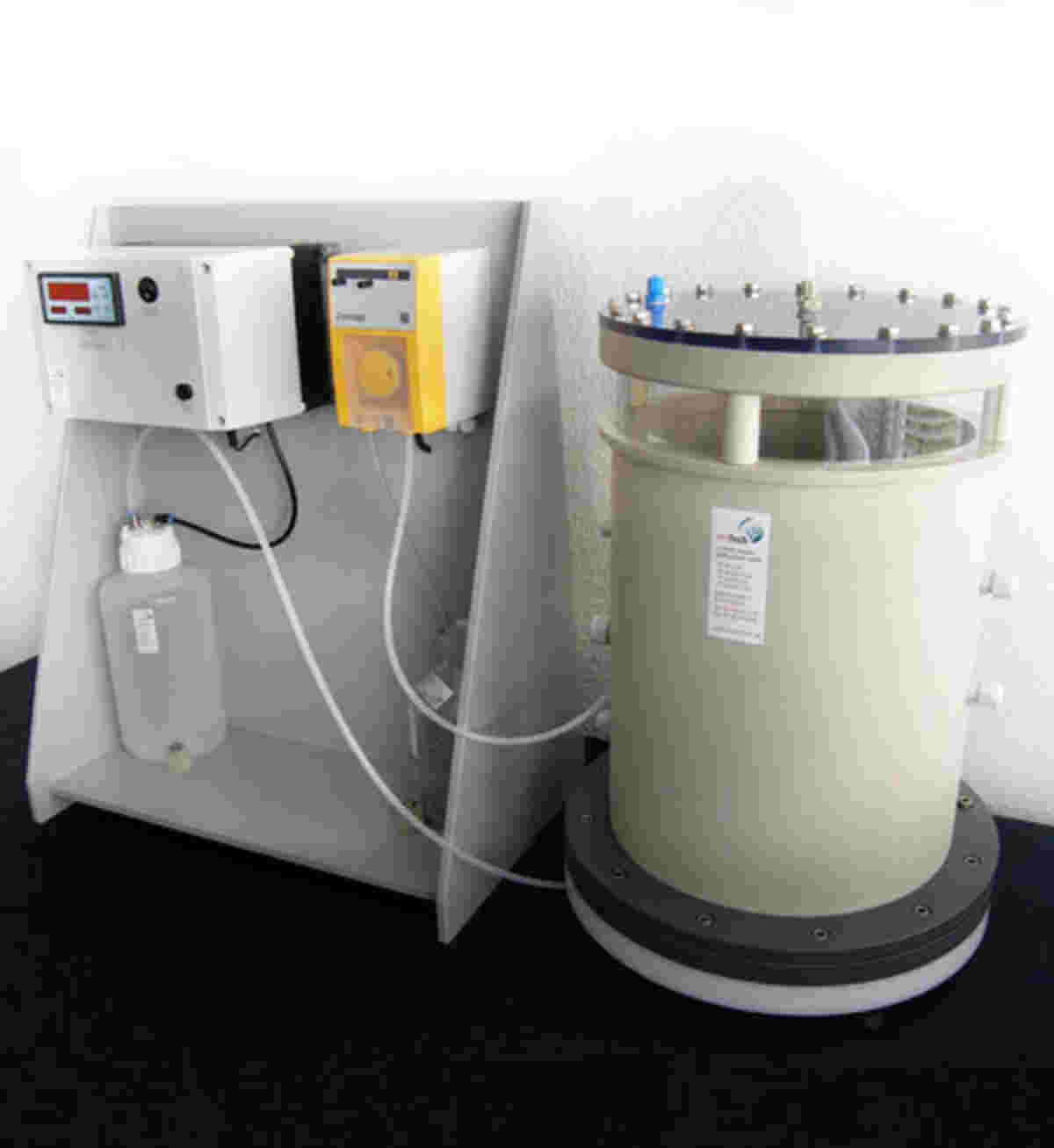

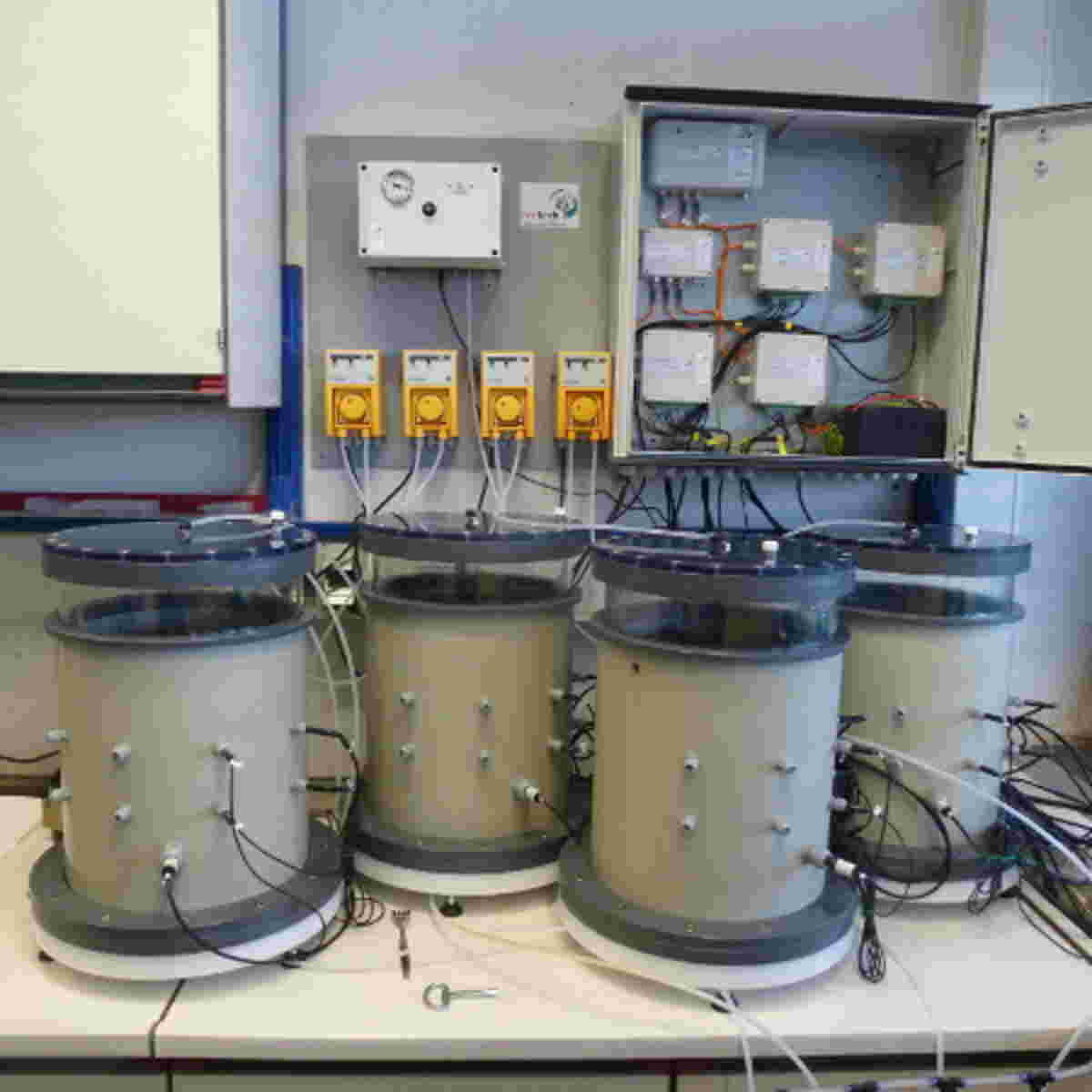

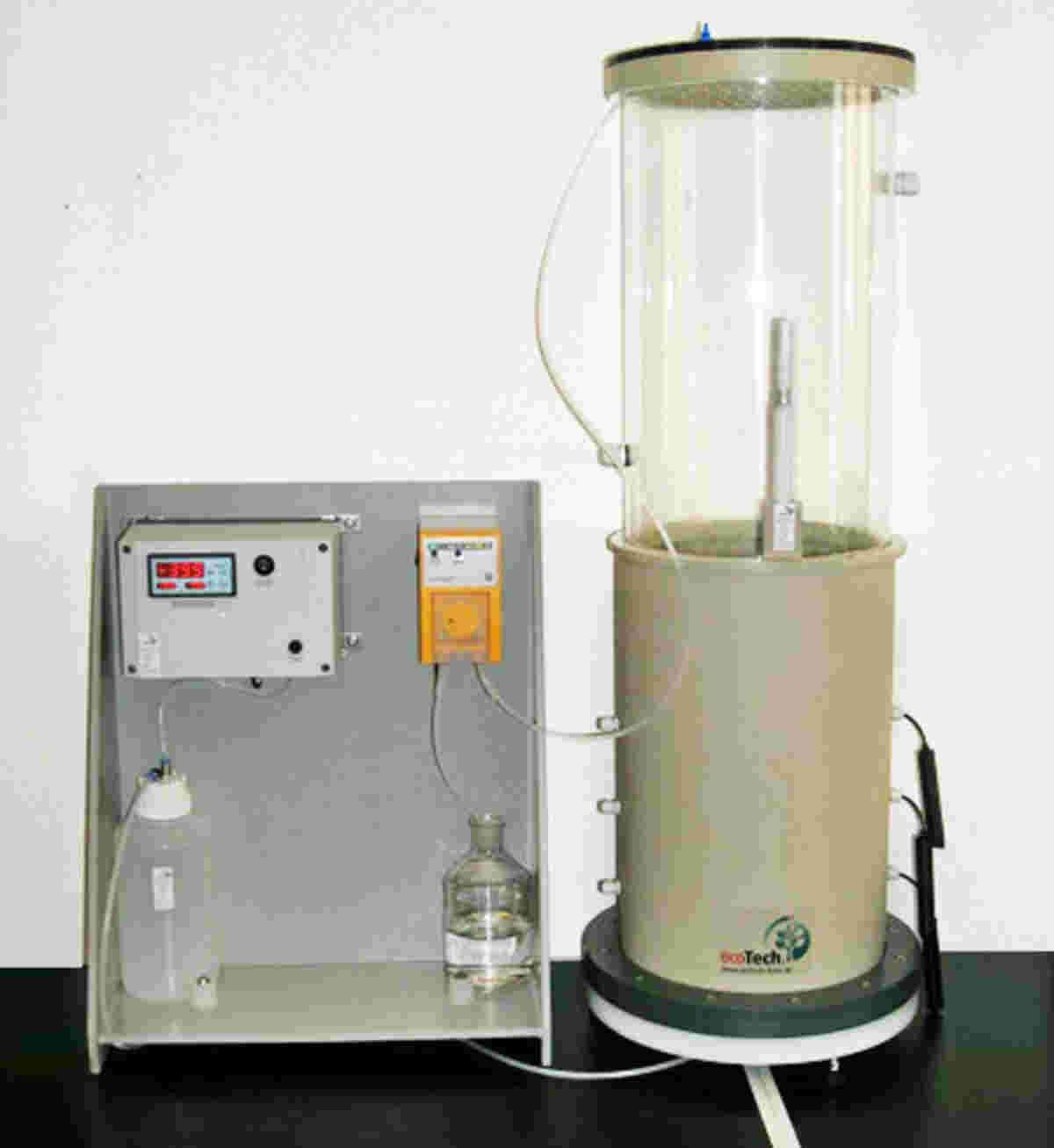

Feeding of sprinkling head to irrigate the soil surface in lab lysimeter

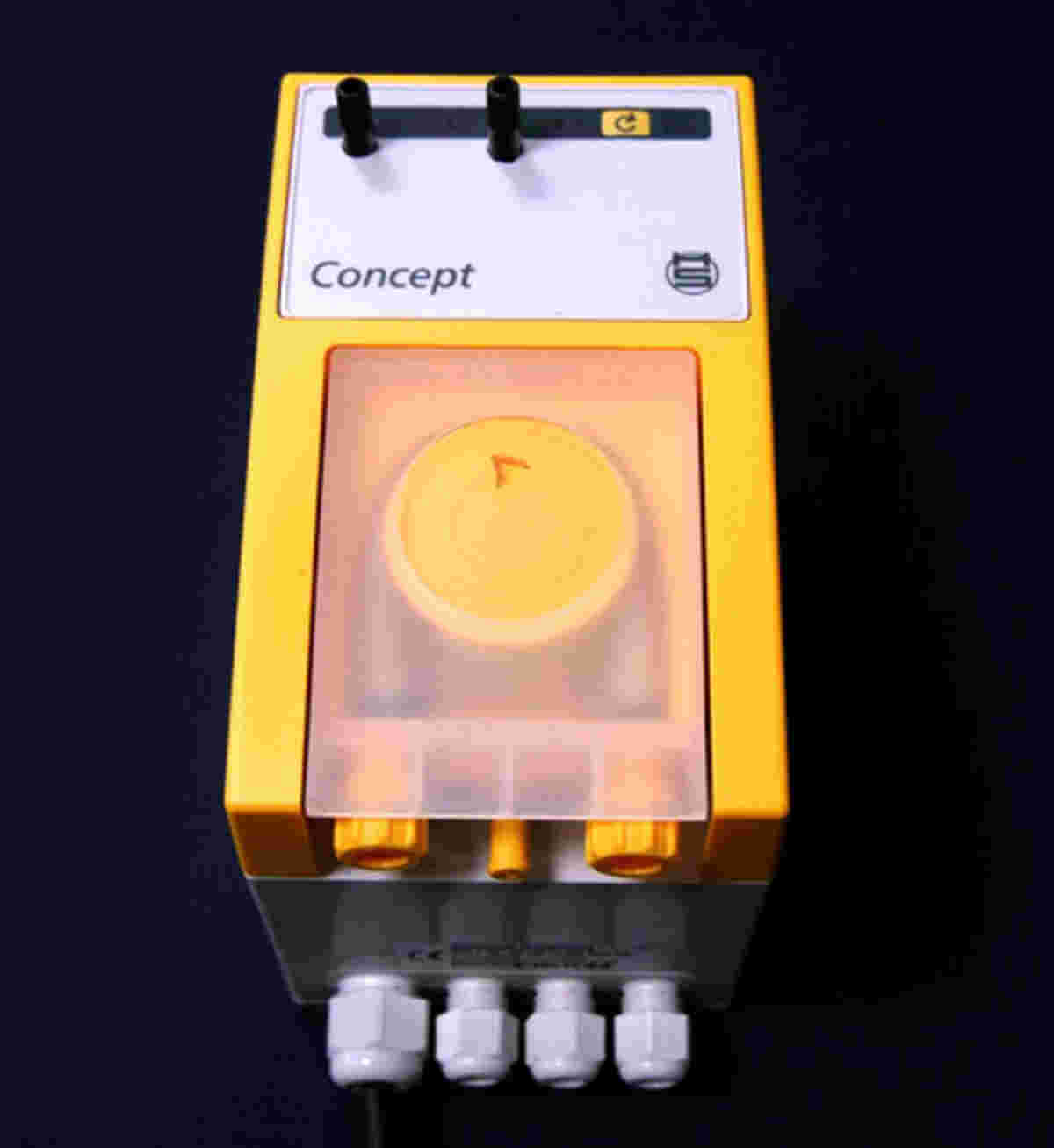

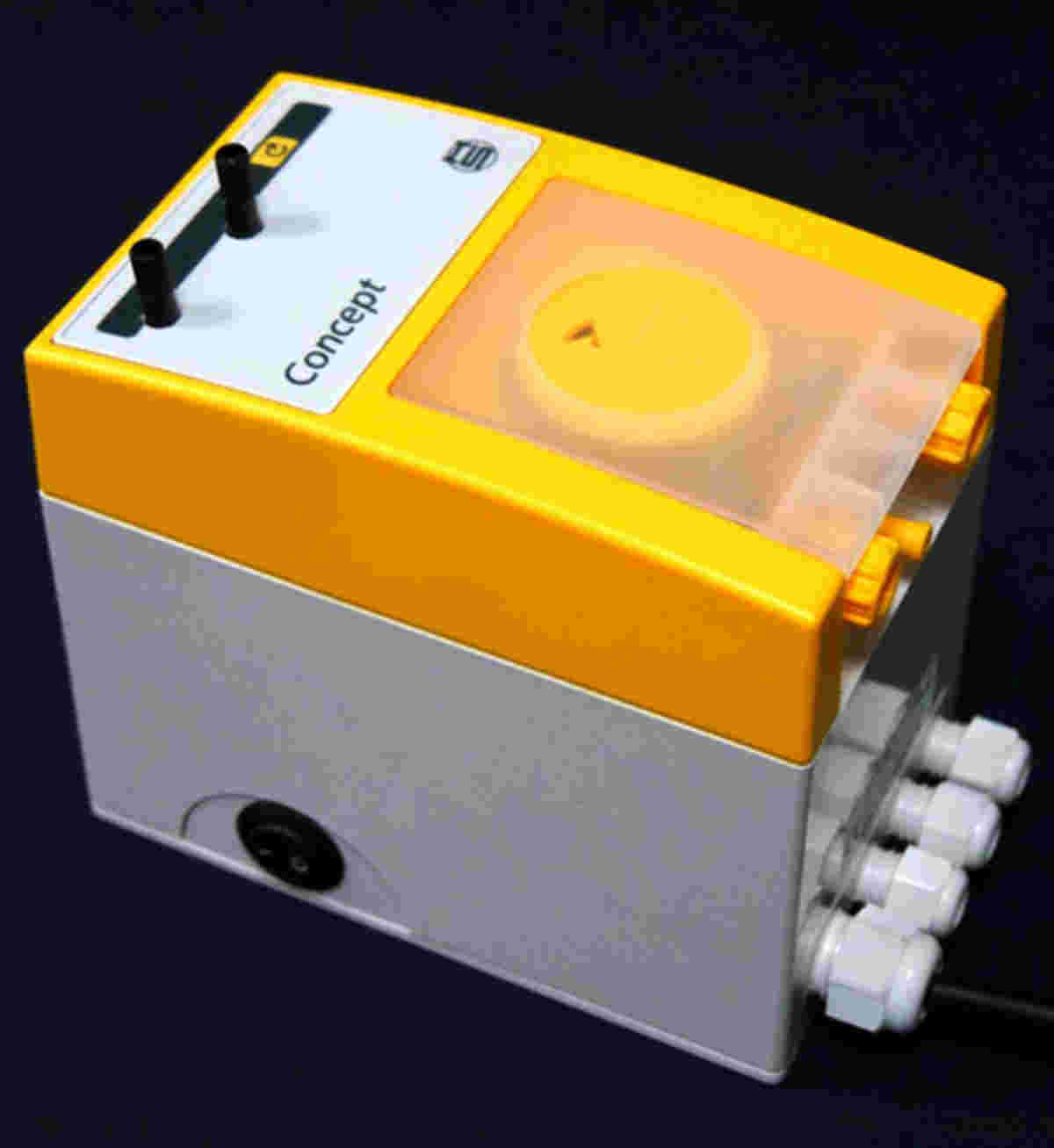

  • Self-priming peristaltic pump
  • Two controllers for coarse and fine dosing of flow rate
  • Button to speed-up initial filling of tube and sprinkling head
  • Different rotor sizes available to set-up various flow rate ranges
  • Compact housing
Flow rate: 0.83 to 4.5 ml/min (Standard version)
Operating voltage: 230 V, 50 to 60 Hz
Operating temperature: 10 to 50 °C
Dimensions (LxWxH): 130 mm x 92 mm x 170 mm
Weight: approx. 1.2 kg
