Lab lysimeter
Analysis of leaching and solute fluxes in the laboratory
Get product information here:
Lab lysimeters in greenhouse cultivation/use
Inside view with Redox-Electrodes and pH-Electrodes
Lab lysimeters with various sensors and vacuum station

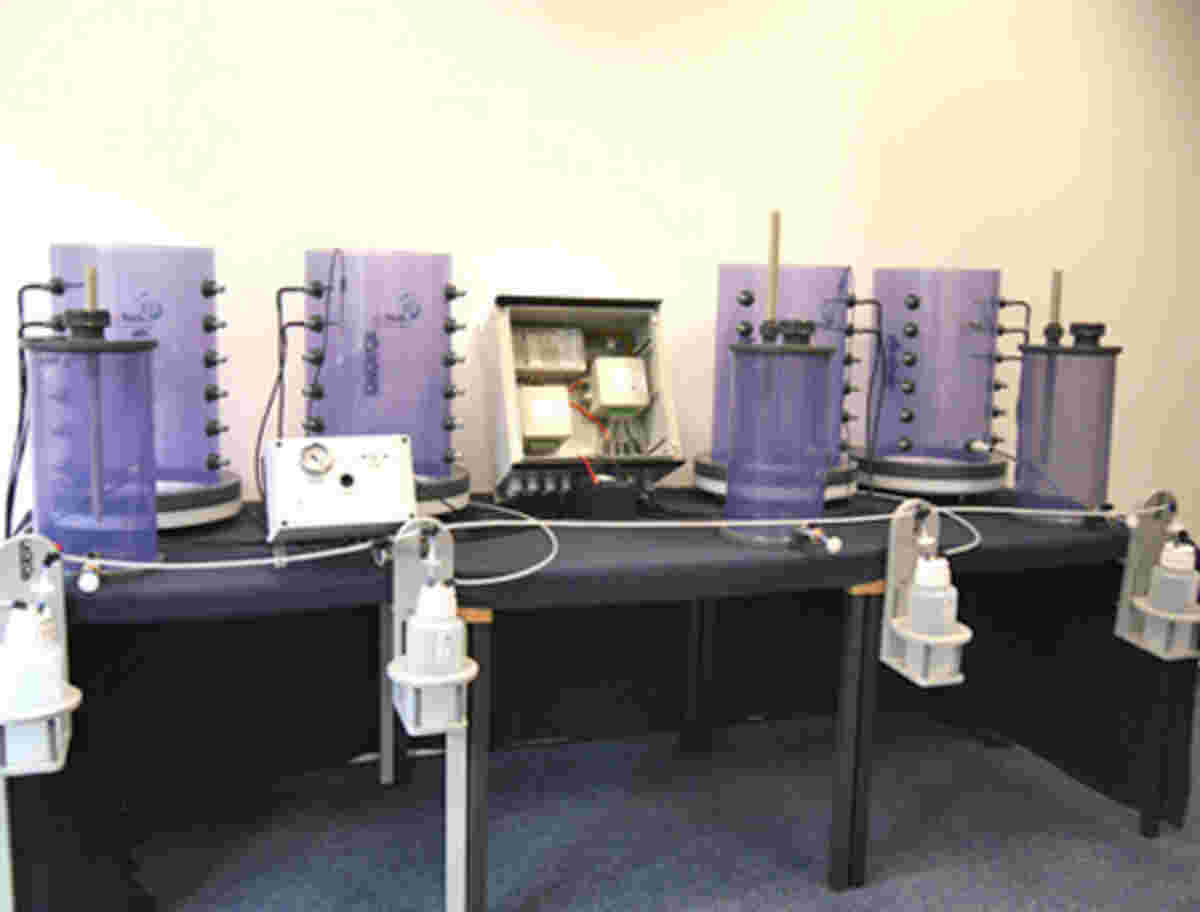

Lab lysimeters with measuring technique and Mariotte Flasks

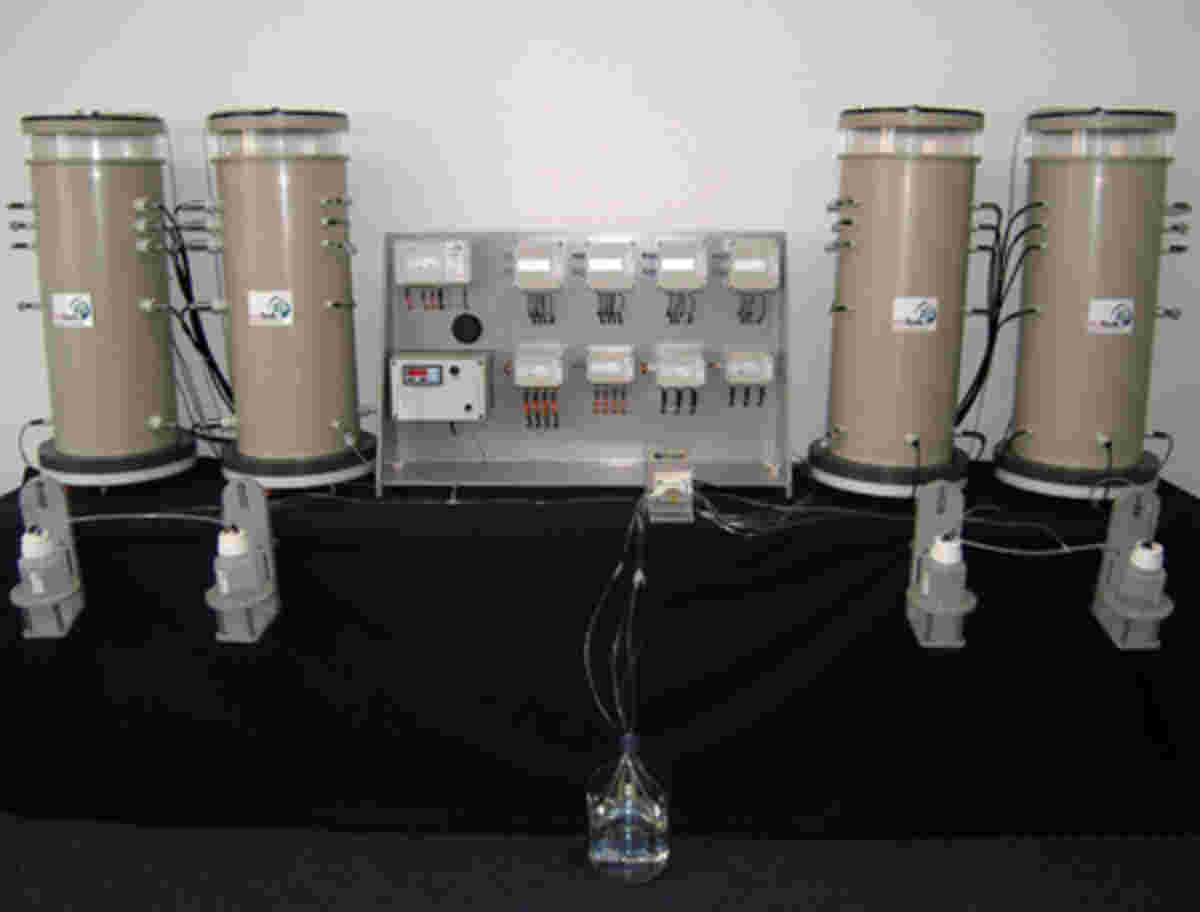

4 lysimeters with pH & redox
Detailed setup of a laboratory lysimeter with a weighing platform, sensors for pH, redox, soil moisture, EC, temperature, water tension, and a system for soil water extraction and data logging. The setup allows precise monitoring of soil physical parameters under controlled conditions.
To study the migration of nutrients and pollutants in soils or other porous materials. Determination of mass balances at the mesoscale
- Minimal sorption (Excursus: Suction cup product finder)
- Suitable for heavy metals, metalloids, macro elements etc.
- Saturated and unsaturated conditions
- Sprinkling head delivers controlled precipitation
- Wide range of specific accessories available
- Filter membrane can be easily replaced
- Exchangeable Lysimeter shell (different height and materials available)
- Possible measurement parameters
- Weight
- Water content
- Relative humidity & temperature
- Water tension (Mini Tensiometer or Tensiomark)
- pH
- Redox
- Pore water - Suction cups (Suction Lysimeters) (glass, plastic, ceramic)
- and more...
| Lysimeter shell | |
| Material: | Polypropylene, PVC, Steel (choosable) |
| Diameter: | 300 mm (ID) |
| Thickness: | Material-dependent 2-8 mm |
| Suction bottom | |
| Filter medium: | Polyamide membrane |
| Pore size: | 0,45 μm |
| Bubble Point: | min. 1000 hPa |
| Delivery capacity: | ca. 1,1L/min (water saturated, 500 hPa vacuum) |
| Tube | |
| Material: | PE, PTFE, others on request |
| Diameter: | 4/6 mm (inside/outside) |
- fileadmin/user_upload/Produkte_Header/Header_Laborlysimeter.jpg Laboratory Lysimeter in Stainless steel with LED rainhead.
