Application example: Molybdenum in steelworks slags
Molybdenum in steelworks slags – Leaching and sorption
Get product information here:
How much molybdenum is leached out of steelworks slags and what part of it - depending on the substrate's own pH - is subsequently sorbed in underlying soil layers?
Molybdenum in steelworks slags – Leaching and sorption

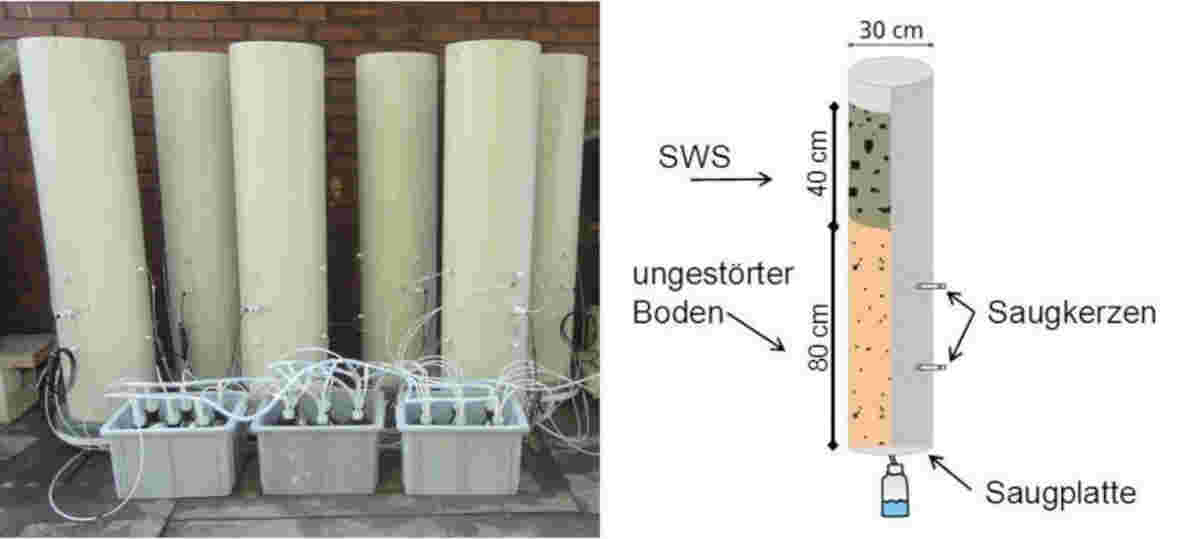

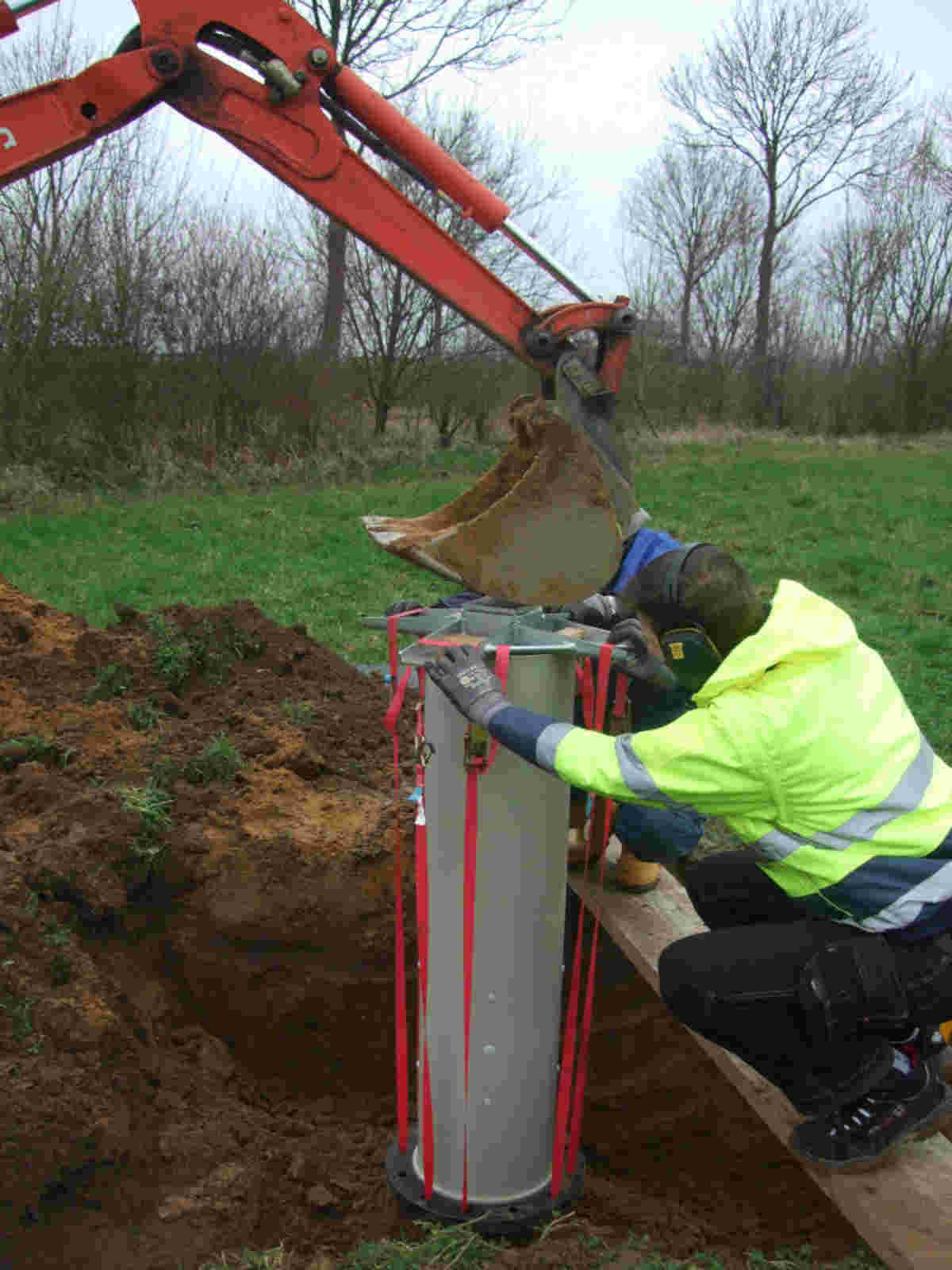

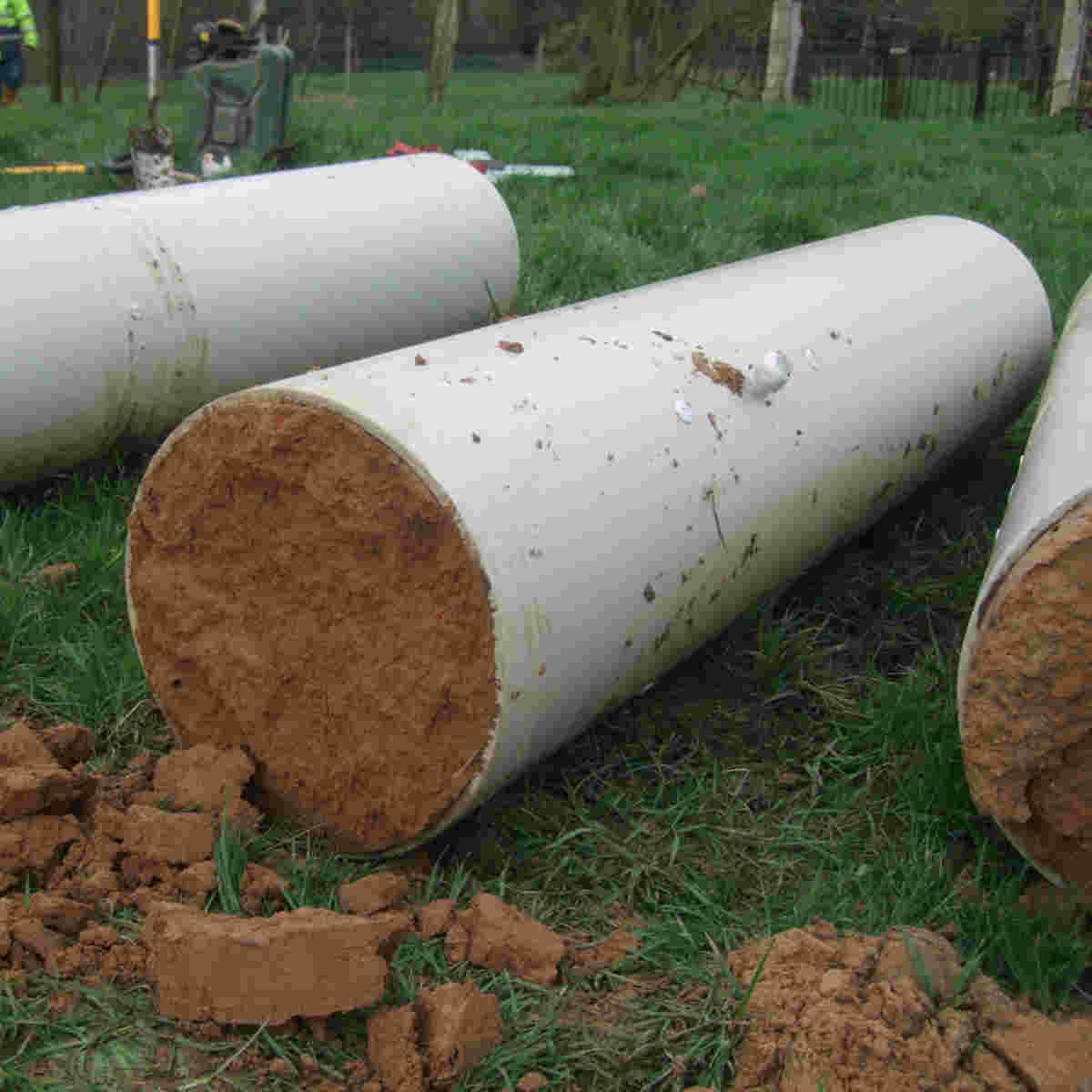

- Extraction of undisturbed soil columns (D = 30 cm, H = 80 cm) with ecoTech laboratory lysimeters

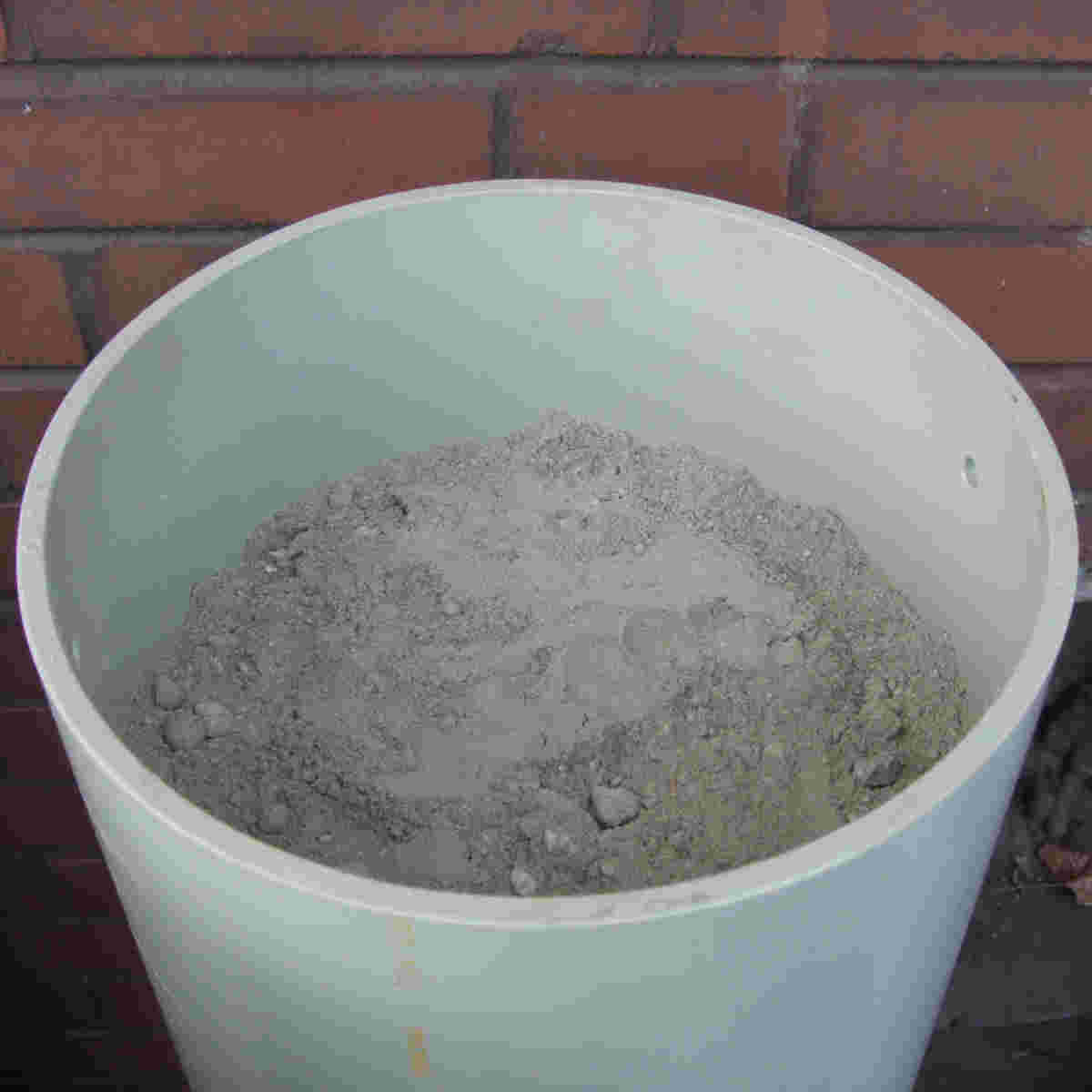

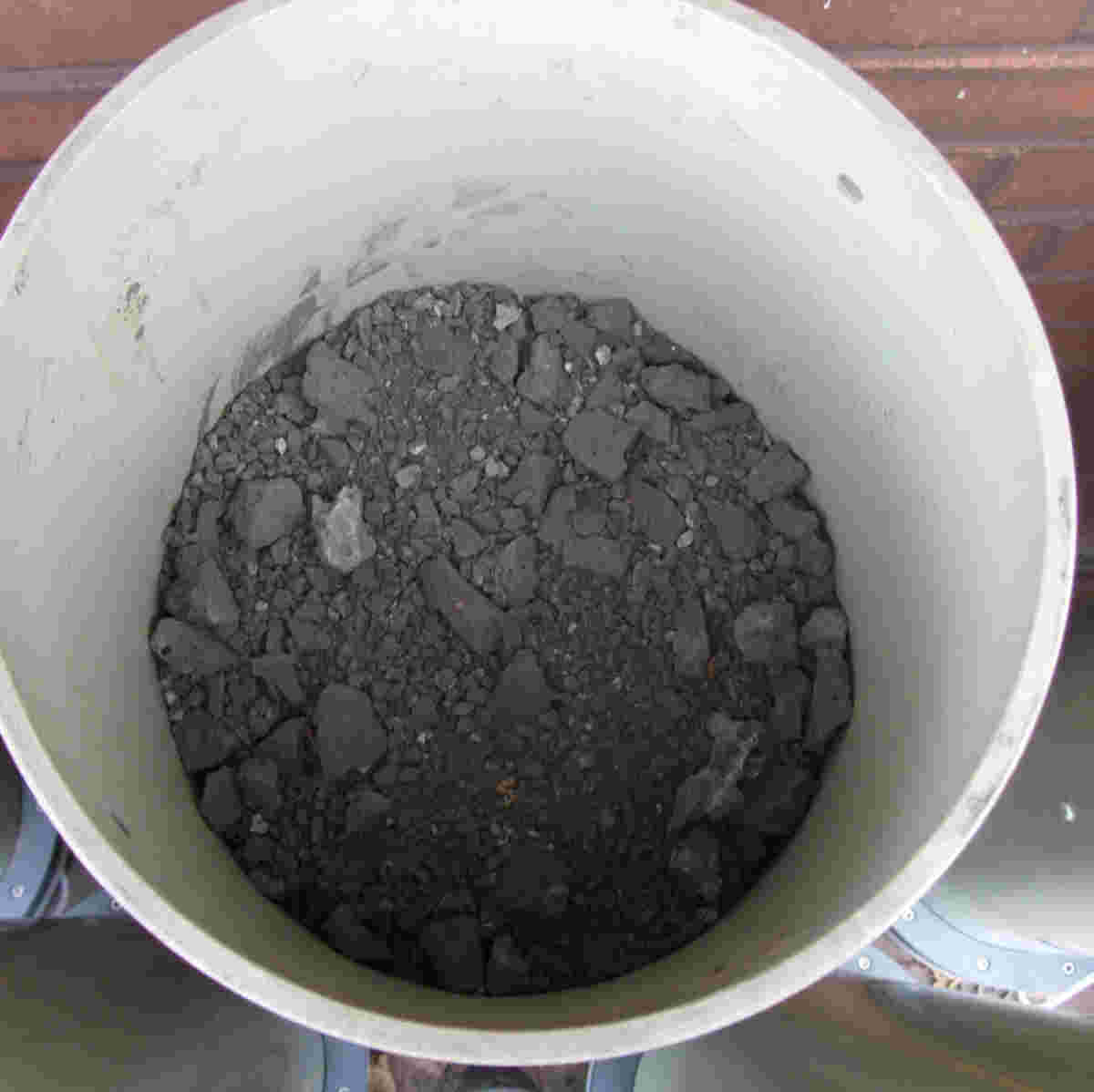

- Deposition of various steelworks slags with known high molybdenum leaching rates on the soil surface to simulate installation of steel mill slag, e.g. in open road construction
- Irrigation of lysimeters and removal of seepage water with mini-suction cups at different heights of the soil column and at the suction bottom of the laboratory lysimeter
- Analysis of the leachate to investigate the sorption behavior of molybdenum in the soil body
- Accompanying measurements of the redox potential in the soil body and pH in the eluate
| Products |
| Lab lysimeter, heigth: 130 cm |
| Insertion ring & driving plate |
| Miniature plastic suction cups |
| Mechanical vacuum controller |
| Redox electrodes acc. to Mansfeldt |
FEhS – Institut für Baustoff-Forschung eingetragener Verein e.V.
Bliersheimer Straße 62
47229 Duisburg
Contact Person:
| Dr. Ruth Bialucha | |
| Dipl.-Geogr. Martin Leson | m.leson@fehs.de / Tel.: 02065-994571 |
- Report Building Materials Institute (German only)
- Report (German only)
