Application example: Irrigation monitoring

in commercial fruit growing

Get product information here:

Enquire now

Due to the changed climatic conditions, controlled irrigation in agriculture is currently gaining importance. Especially in the field of permanent crops, it now ensures the income security and long-term prospects of fruit grower farms. Not only the investment in the irrigation infrastructure, but also the efficiency of water use is an important economic factor for companies.

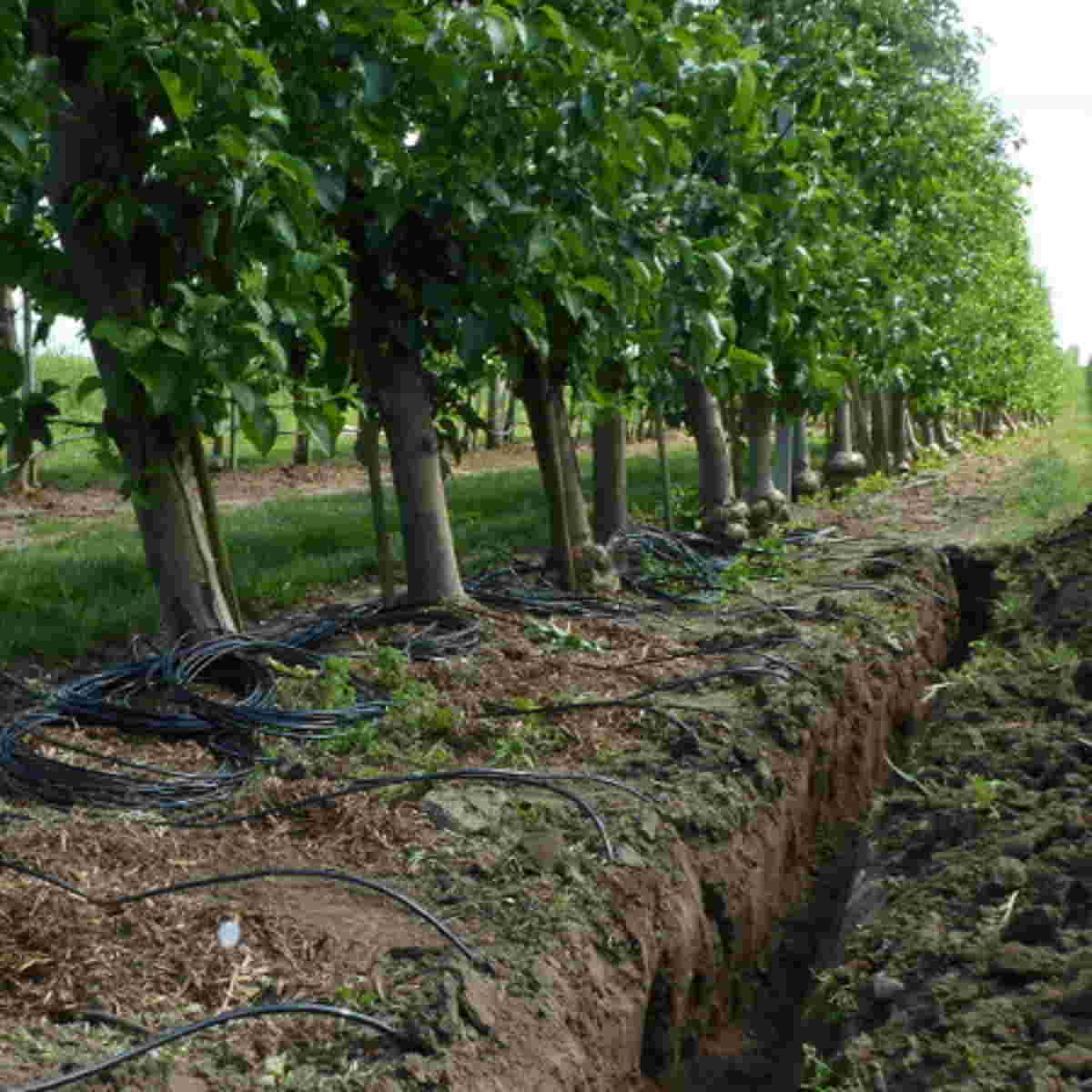

In the central German dry area (Querfurt, Saxony-Anhalt), therefore, the effectiveness of drip irrigation in an apple orchard is being checked with the aid of modern measuring technology.

Experimental Procedure

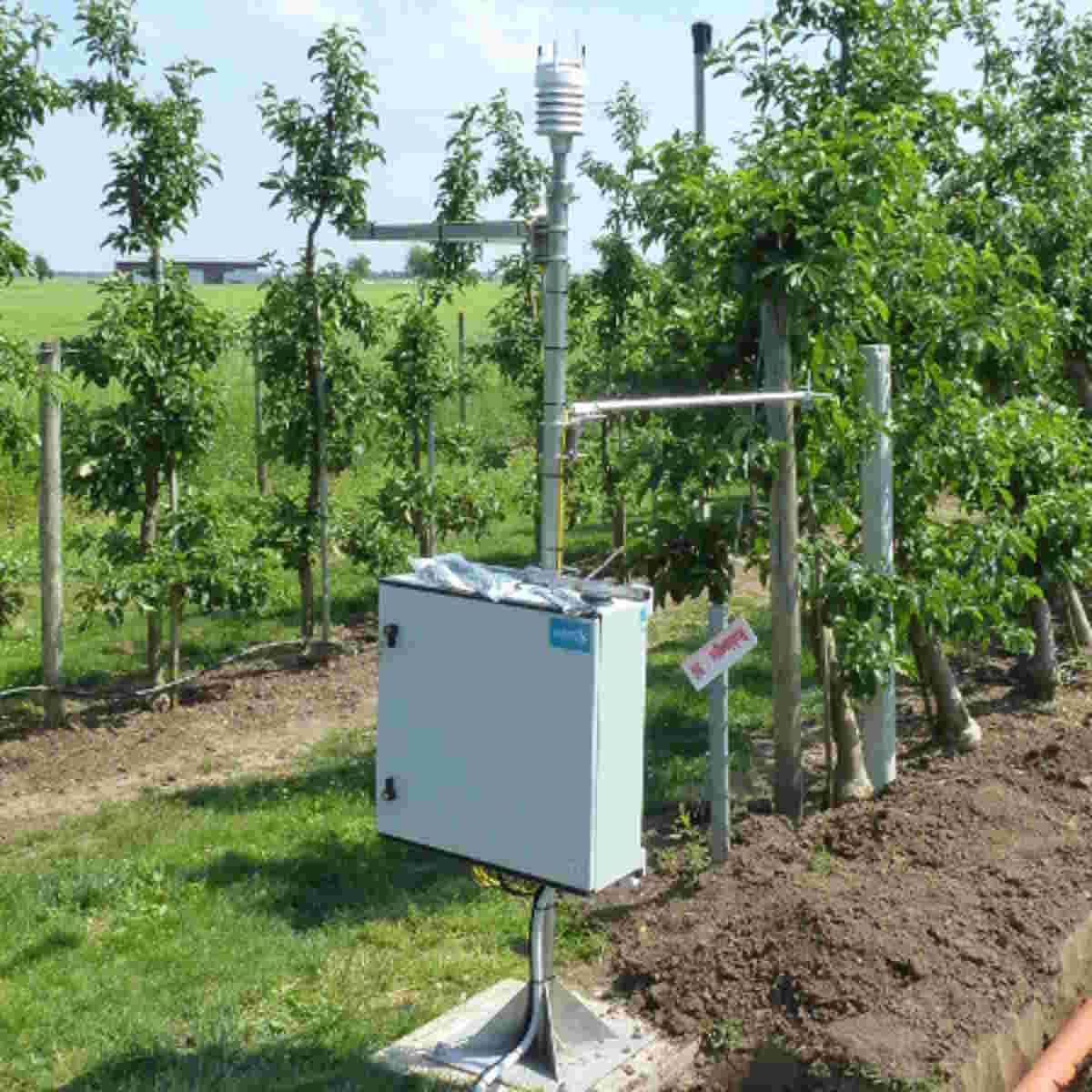

Observing the water balance in the (drip-) irrigated root zone of apple trees. Incorporation of 9 Tensiomark and 9 Hydra probes at depths of 30, 60 and 90 cm along a tree line of the Elstar apple variety. Simultaneous measurement of the most important climate parameters, i.a. to calculate the potential evaporation.

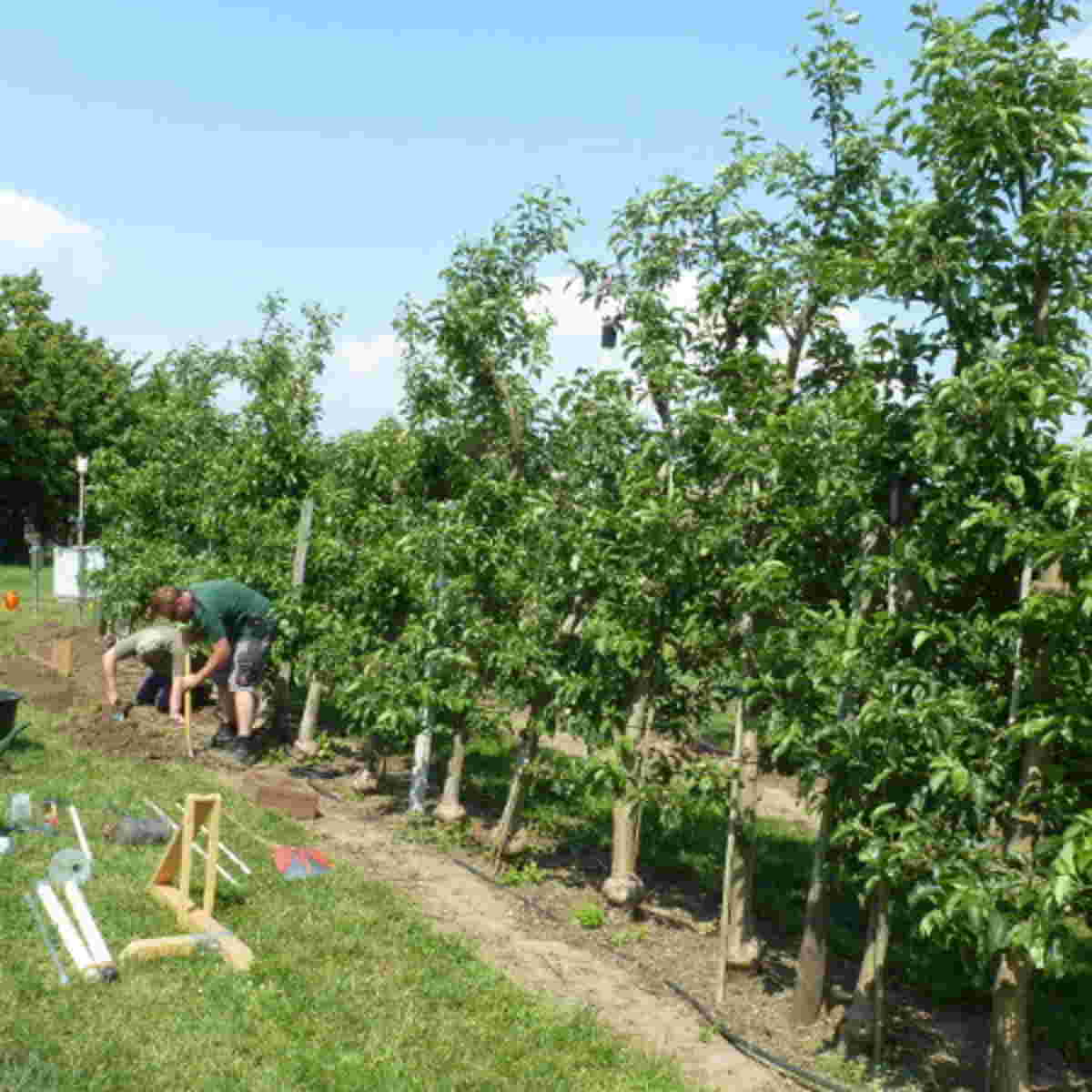

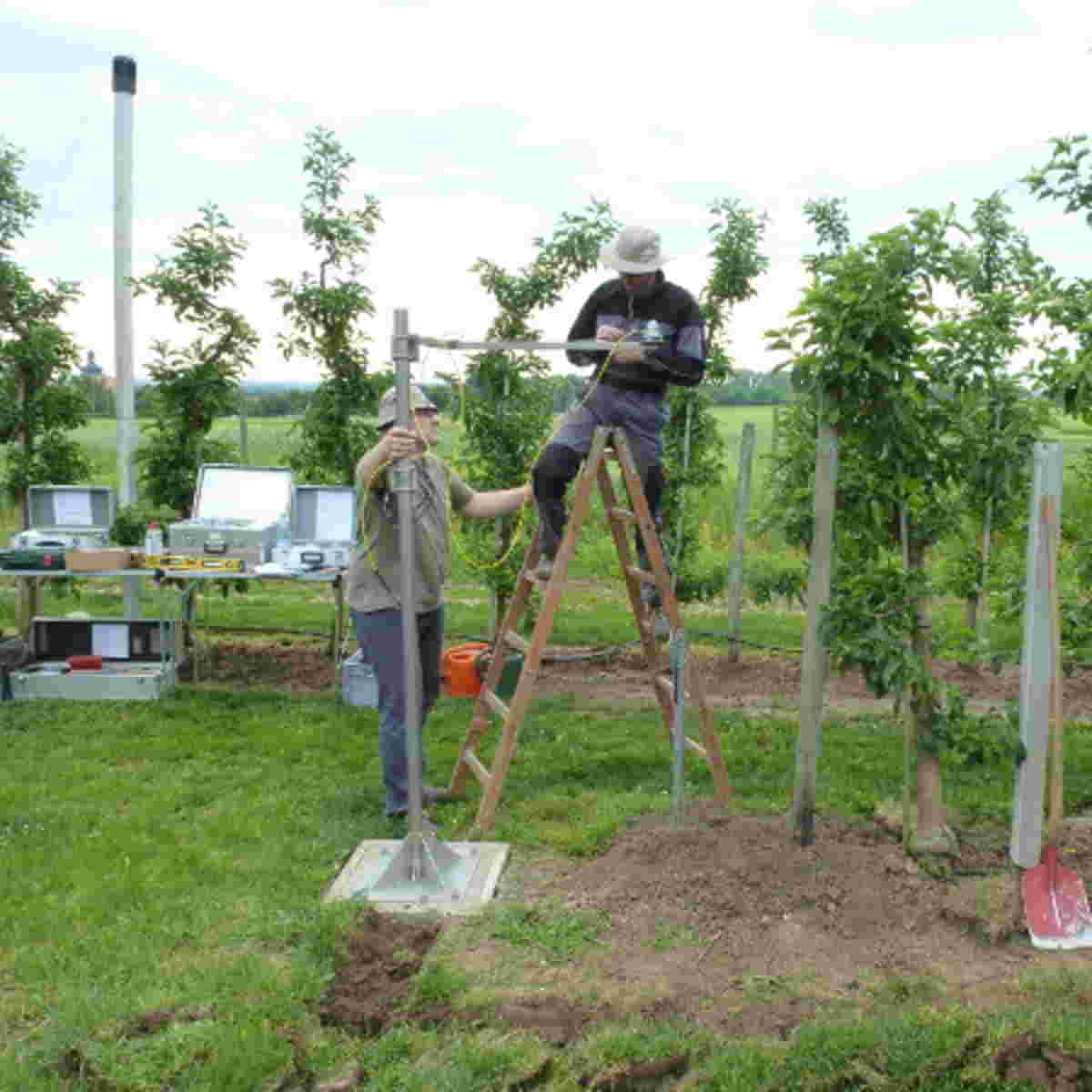

The devices were delivered by ecoTech and installed together with employees of the University of Halle.

Product Parameter
Tensiomark Soil water tension, soil temperature
Hydra-Probes Vol. water content
MeteoMS Wind speed, wind direction, precipitation, temperature, rel. humidity, air pressure
Pyranometer / Globalstrahlungsgeber CMP3 Global radiation
Radiation balance transmitter NR Lite2 Radiation balance
Tipping bucket rain gauge Precipitation
Leaf wetness sensor WLW100 Leaf wetness
enviLog Maxi data logger

Martin-Luther-University Halle-Wittenberg
Institute of Earth Sciences
Von-Seckendorff-Platz 4
06120 Halle

In cooperation with Obsthof Müller (see LOGO)

Contact Person:

Dr. Gerd Schmidt
