Application example: Wireless sensor network
In a fruit orchard pilot plant
Get product information here:
Monitoring of weather data, soil moisture and temperature as well as the recording of the small-scale variability of air humidity and air temperature within the trees of a fruit orchard experimental plant (Bavarian State Institute for Viticulture and Horticulture, LWG).

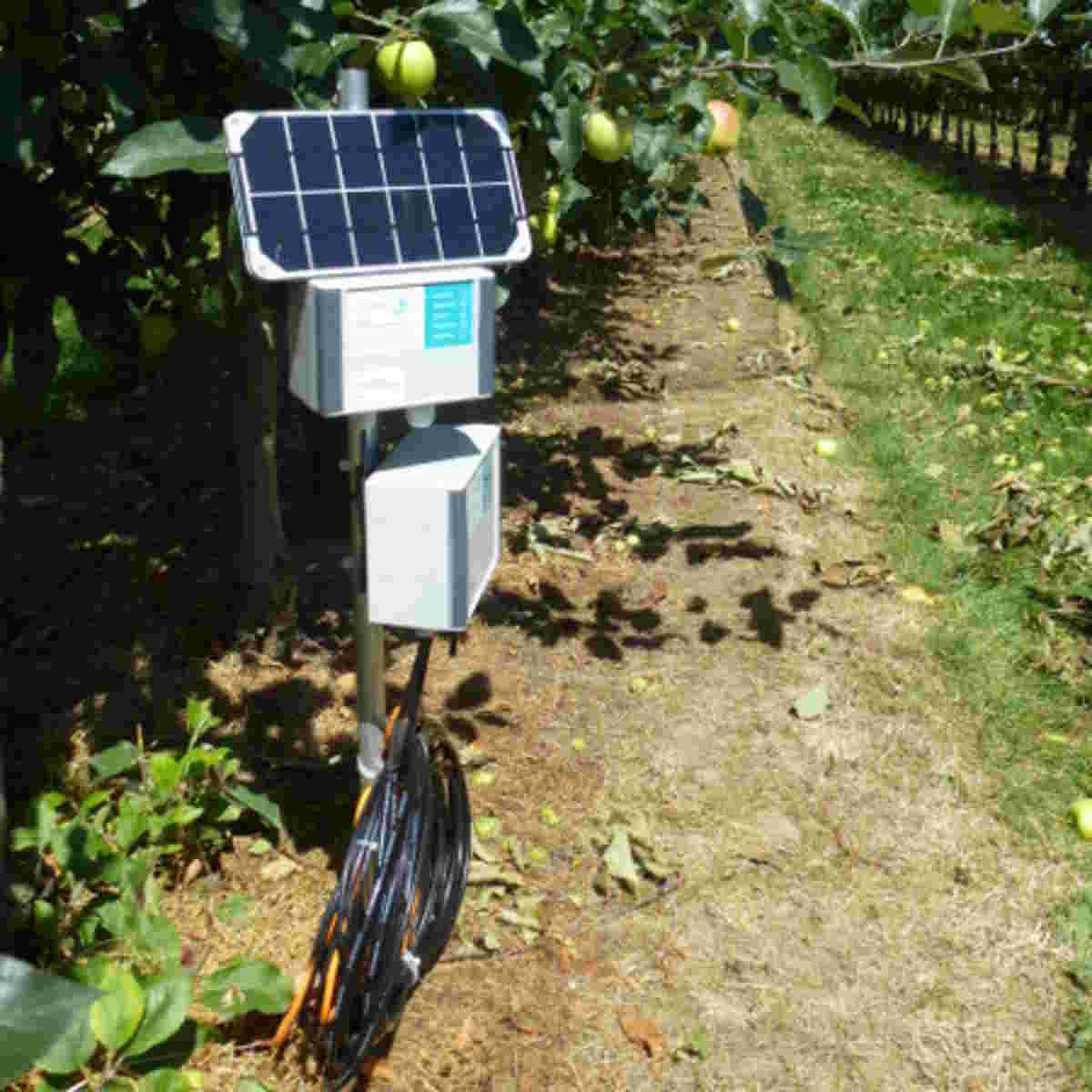

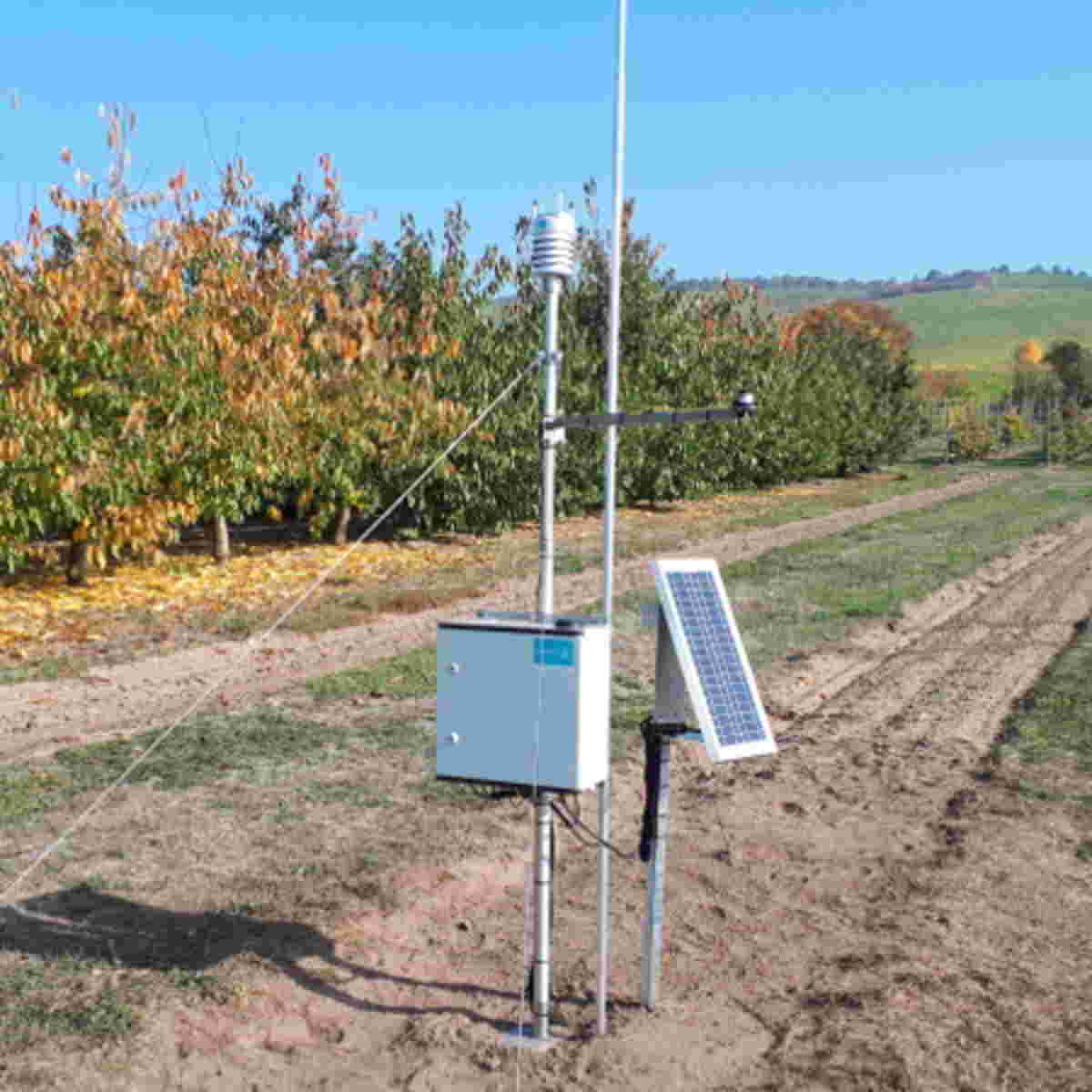

Sensor network consisting of a central weather station with six soil moisture sensors and eight wireless mini loggers for soil and climate parameters.

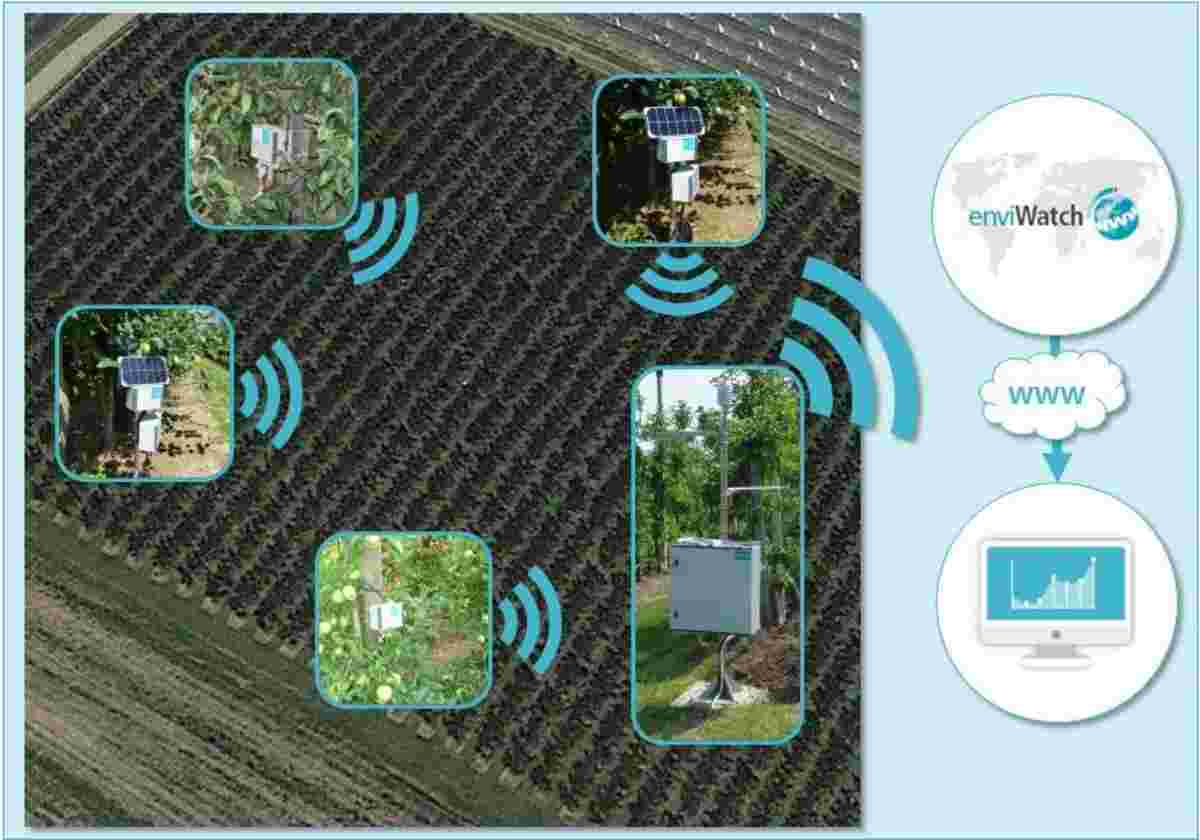

Data transmission of the eight mini loggers via radio transmission to a central enviLog datalogger as main logger (up to 48 mini loggers are possible). Automated data transfer from the main logger to a database server and from there to the user PC.
The devices were delivered by ecoTech and installed in October 2018 together with employees of LWG Veitshöchheim.
| Product | Parameter |
| Tensiomark | Soil water tension, soil temperature |
| Hydra Probes | Vol. water content |
| MeteoMS weather multi parameter sensor | Wind speed, wind direction, precipitation, temperature, rel. humidity, air pressure |
| PAR quantum sensor PQS1 | Photosynthetically active radiation |
| Leaf wetness sensor WLW100 | |

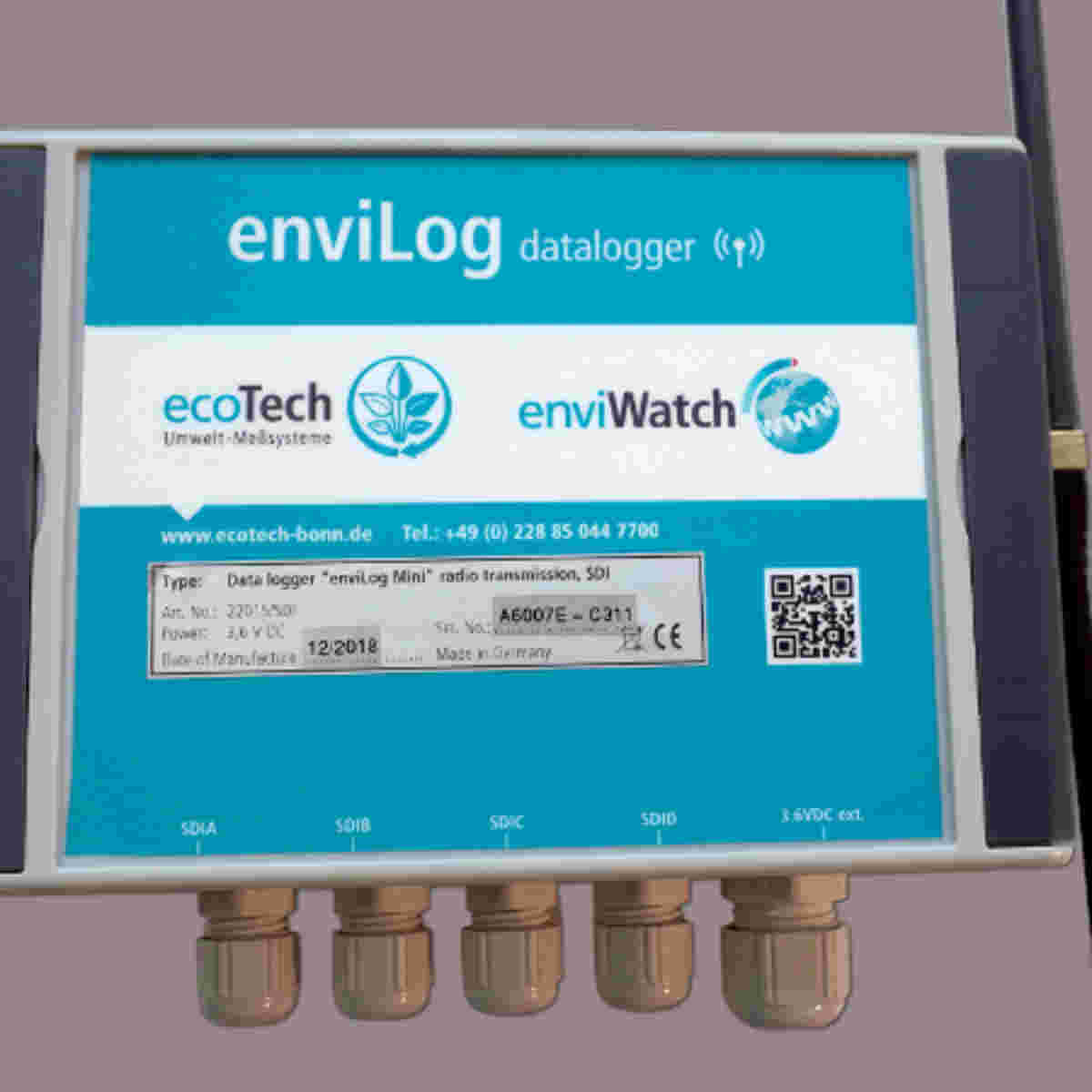

| Data logger enviLog Maxi with data transmission | |
| Data logger enviLog Mini rF-T | Air temperature, rel. humidity |
| Data logger enviLog Mini SDI |
Bayerische Landesanstalt für Weinbau und Gartenbau (LWG)
Institut für Erwerbs- und Freizeitgartenbau
Arbeitsbereich Technik und Unternehmensentwicklung (IEF 4)
An der Steige 15
97209 Veitshöchheim
Contact person:
| Alexander Zimmermann | alexander.zimmermann@lwg.bayern.de |
